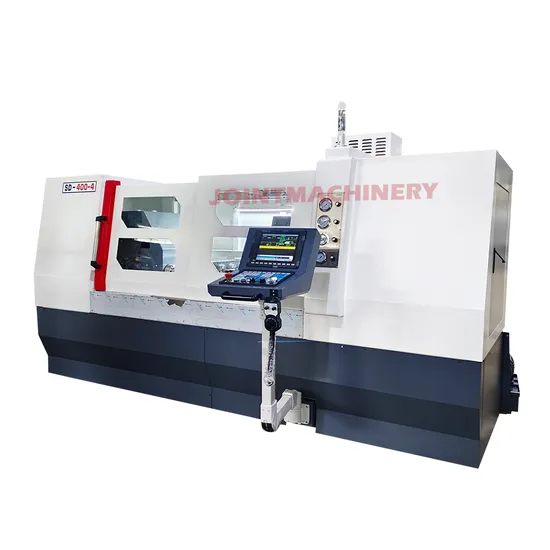

600mm Drilling Depth Multi-Spindle Horizontal CNC Deep Hole Drilling Equipment

Product Description

Drilling stands as the cornerstone of machining operations, holding a significant position in diverse application fields. Traditional drilling equipment like bench drills, milling machines, and radial drills often constrain operators, binding them to repetitive tasks without guaranteeing quality. Factors such as safety, efficiency, and processing limitations have long influenced manufacturers and operators. With the dawn of the CNC era, the CNC deep drill has revolutionized the landscape by liberating operator constraints and overcoming the challenges of deep drilling processes. This evolution ensures that a single drilling operation can achieve the same quality as traditional methods across drilling, enlarging, and expanding tasks while also enabling automatic chip removal, precise CNC positioning, and seamless automated processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Multi-Spindle Deep Hole Series
The multi-spindle deep hole drill is a highly specialized machine tool engineered to focus on machining the central deep hole of shaft components. This innovation is designed to furnish customers with exceptional solutions in high-efficiency, precision, and superior finish for deep hole machining applications involving shaft parts.
1. Specifically created for machining the central hole in bar stock, this device is ideally suited for deep hole machining of the center hole, ensuring unmatched precision.
2. The simultaneous operation of double spindles significantly enhances work efficiency, allowing tasks to be completed with remarkable speed.
3. The use of tapered hole guidance and high-pressure oil cooling systems provides robust assurance for achieving high precision and an impeccable finish.
4. Customers have the flexibility to choose between a Siemens or Taiwan's latest generation CNC system, customizing based on specific requirements.
5. Automation is elevated to new heights with optional inclusion of a manipulator for automated loading and unloading, maximizing operational efficiency.
600MM Drilling Depth Multi-Spindle Horizontal CNC Deep Hole Drilling Equipment

Model	Unit	SD-600
Inner diameter of drilling	mm	2.5-25
Max drilling depth	mm	600
Max diameter of workpiece	mm	72
Max length of workpiece	mm	700
Max rotating speed of principalaxis	rpm	6000
Clamping diameter range	mm	10-150
Spindle feed speed	mm/min	0-1000
Spindle travel speed	mm/min	0-5000
Workpiece rotation speed	rpm/min	144
Spindle rotating motor power	kw	7.5/11
Workpiece rotating motor power	kw	0.75*2
Total power of machine tool	kw	30
Coolant pressure range	mpa	3-12
Coolant flow range	L/min	0-64
Machine size	mm	5200*2000*2200
Machine weight	kgs	4800

Shenzhen Joint Machinery Co., Ltd. stands as a premier manufacturer and exporter in the realm of CNC machinery, specializing in CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. We are devoted to delivering top-tier machines and exemplary services to our global clientele. Our relentless focus on quality control and enhancement ensures our products meet and exceed the highest industry benchmarks. We integrate advanced technologies from Taiwan and Germany, paired with cutting-edge production equipment and methodologies, to offer products of unparalleled quality and dependability. Our machinery is celebrated for its extraordinary performance in precision, stability, and reliability, adeptly addressing various intricate and demanding machining needs. Globally, our products have earned significant acclaim and are exported across continents, covering Asia, Europe, South America, and North America, among others. We have forged enduring partnerships with clients internationally, fostering substantial business value together.

---
