US$9,500.00-28,600.00
|
1 Set
(MOQ)
|
Product Description

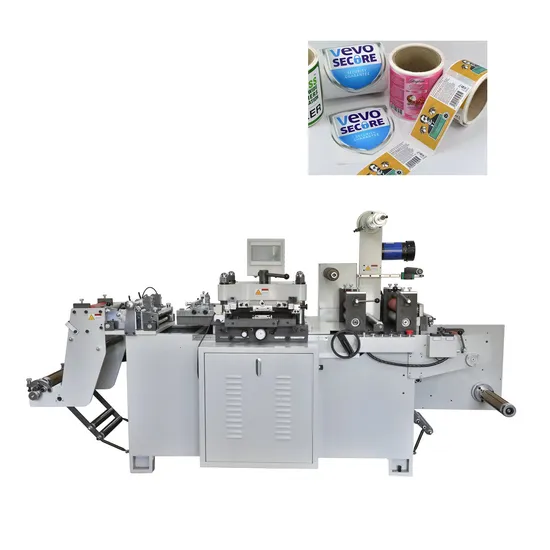

Feature: JM320D High speed die cutting machine is controlled by servo motors, adopts accurate flat bed die-cutting system with max speed of 350repeats per minute. The standard machine consists of Unwinder , web guide sensor ,color mark sensor ,lamination ,flat bed die cutting unit ,waste collection ,sheeter and rewinder . It's the ideal finishing machine for die-cutting all kind of adhesive labels and hologram labels. This machine can be upgrade with Hot stamping ,punching ,IML function with conveyor . Product Made from Machine:
Teachnical Specifications:
| Max Web Width | 320mm |
| Max Unwinding Dia | 500mm |
| Max Rewinding Dia | 500mm |
| Max Die cutting Speed | 350rpt/min |
| Die cutting Accuracy | ±0.10 |
| Voltage | 1P 220V 50HZ |
| Positioning Precission | 7.5kw |
| Overall Diameter(L×W×H) | 2700mm×1000mm×1500mm |
| Weight | 1700KG |
Please note the machine speed may be limit by other units.
Detail Configuration:
| Main Electrical Part | Brand |
| PLC | Panasonic (Japan ) |
| Touch Screen | Kunlun(China) |
| Web Guiding Sensor | Hengwang(China) |
| Electric components | Schneider ( France ) |
| Transducer | Holip(Denmark) |
| Power Switch | Taiwan China |
Machine Detailed Pic for Reference:
1. Web guide sensor 2.Automatic Paperless stop
3. Pull by Servo controlled
4. Stable die cutting pressure 5.reversible cutting board(Patented design)
6. Sheeter device 7.Punching
8.Lamination device
About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:
>>
