US$1,500.00-13,500.00
|
1 Set
(MOQ)
|
Basic Info.
Computerized
Non-Computerized
Applicable Material
Plastic Pipe Plastic Profile
Processing Capacity
100-3000kg/H
Raw Material
Waste Plastic Pipe Profile
Final Product
Small Crushed Scrap
Name
Plastic Pipe/Profile Crusher
Transport Package
Wood Package
Production Capacity
200sets/Y
Product Description
SWP PVC pipe crusher/pipe crushing machine
This pipe/profile crusher machine is used in crushing waste plastics and defective plastic products to plastic granules.it mainly used for crushing the plastic PVC,PP,PE,HDPE, LDPE pipes, window and door profile, various plastic sheet and so on. We have different kinds of crusher, you can choose the suitable according to your material.
Feature:
1-Steel body and clamping blade prevent the machine from cracking
2- Stepped blades increase shearing strength and crushing efficiency
3-Movable screen is easily to assembly, disassemble and wash
4-Sound separation layer in the feeding door lowers operations noise levels
Main Technical Parameters:
Model
| SWP300
| SWP400
| SWP500
| SWP600
|
Rotary Knife Diameter(mm)
| 400
| 400
| 400
| 400
|
Rotary Knife Quantity (unit)
| 3
| 5
| 5
| 10units/2groups
|
Rotary Knife rpm(r/min)
| 600
| 500
| 500
| 480
|
Static Knife Quantity(unit)
| 2
| 2
| 2
| 2x2
|
Sieve Aperture(mm)
| φ10
| φ12
| φ12
| φ12orφ14
|
Crushing Capacity(kg/h)
| 150-200
| 300-400
| 400-500
| 500-700
|
Power(kw)
| 13.2
| 18
| 18-22
| 33
|
Feed Door Caliber(mm
| 300x200
| 350x300
| 500x300
| 650x300
|
Weight(kg)
| 950
| 1300
| 1500
| 1800
|

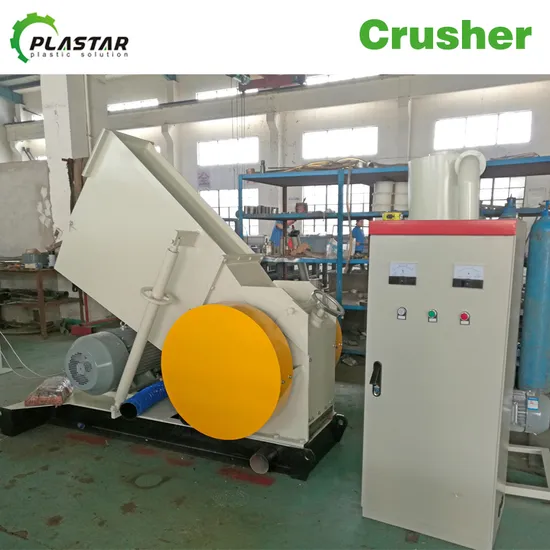

Machine pictures for reference:
About our company:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
>>
