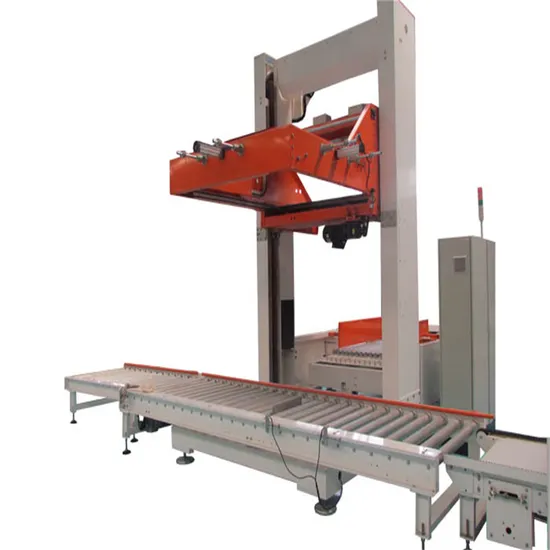

Automatic Gantry Stacker Can Palletizer for Case/Carton/Film Packs

Product Description

Gantry palletizer Product Description Summary
1,Palletizer construction
(1)Various sensor and position controls are adopted to stack products in certain forms.
(2)Stack form: designed by users
2,Running
(1)The feeding conveyor belt is used to arrange the products onto the roller conveyor belt.
(2)The sensor is used to check the products of fixed quantity, and then convey them to the main roller conveyor belt through the push rod.
(3)On the main roller conveyor belt, after the products finish the operation according to the required arrangement form at each layer each time, the gripping arm under the standby status will fall and stop after reaching the designated case gripping position through detection by the sensor. The stacking operation is completed by using the guide rail rod and pallet.
(4)The pallets stored in the pallet magazine will be discharged from the pallet magazine in the form of one pallet by using the pallet hook and pallet lifting conveyor belt and enter the standby status after reaching the designed position. The pallets are conveyed to complete the stacking operation and carry out automatic supply of pallets.
(5)After products stacking is completed, the mechanical arm will move at an angle of 180°. It will start to fall and carry out product stacking operation when reaching the position of the falling sensor. After the products are discharged, it will return in the reverse sequence to the designated position for supporting the products.
Main technical parameters
1,Model: KYXLPAL-15HD
2,Operation mode: horizontal pallet type
3,Production capacity: 30-35 cases/min
4,Pallet dimensions: depending on customer requirements
5,Carton dimensions: depending on customer requirements
6,Arrangement mode: depending on customer requirements
7,Pallet magazine: 10 pallets as standard
8,Power consumption
8-1) Power: 8kw
8-2) Air: 450L
9,Stacking limit
9-1) Pallet conveyor: 2 pallets
10,Equipment dimensions(about)
10-1) L8600*W4150
10-2) Weight: 5500kg
11,Conveyor height(about)
11-1) Feeding case conveyor: 850mm
11-2) Pallet output conveyor: 650mm
12, Stacking plate storage
12-1) Loading capacity
- Automatic supply of 10 to 15 stacking plates
- Supply from the bottom
- Control motor
- Operation button
- Damaged stacking plate rejecting device
12-2) Stack plate conveyor belt
- Overload chain plate
- Start and stop drive
- The stack plate guide rail can be adjusted; Terminal pneumatic control device for supply of stacking plates; Position detectors for empty stacking plates.
Accessories brand
1,PLC: SIEMENSS7-200
2,Low-voltage electrical components: France Schneider
3,Frequency converter: Germany Doctor
4,Operation button,switch, indicator light: France Schneider
5,Photo electricity switch: Germany SICK or Japan OMRON
6,Proximity switch: Germany SICK
7,HMI: Germany SIEMENS
8,Cylinders and solenoid valves: Taiwan AIRTEC Detailed Photos
FAQ Q : Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: How long the warranty will be?
A: We provide 12 months for the main parts of the machine and lifelong service for all the machineries.
Q: How to find sunrise machine?
A: Search ******, Google, YouTube and find suppliers and manufacture and not traders.
Visit exhibition in different countries.
Send SUNRISE Machine an request and tell your basic inquiry.
SUNRISE Machine sales manager will reply you in short time and add instant chatting tool.
Q: You are welcome to our factory at any time.
A: If we can fulfill your request and you interested in our products, you may pay a visit to SUNRISE factory site.
The meaning of visiting supplier, because seeing is believing, SUNRISE with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q: How to guarantee your funds to be safe and delivery to be on time?
A: Through ****** letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
By letter of credit, you can lock the delivery time easily.
After the factory visit, You can ensure the facticity of our bank account.
Q: See SUNRISE machine how to ensure the quality!
A: In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
Each component before assembly needs strictly control by inspecting personnel.
Each assembly is in charged by a master who has working experience for more than 5 years.
After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
Q:The after-sale service of SUNRISE machine!
A: After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
After the commissioning, we will package the equipment by standard export package for shipment.
According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
Engineers, sales managers and after-sales service manager will form an after-sales team, online and off line, to follow the customers' project.

---
