US$55,999.00-79,999.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Injection Blowing
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
50 Years
Transport Package
Wooden Box
Specification
CE, , SGS, ISO
Production Capacity
300 Sets/Month
Product Description
Product Description

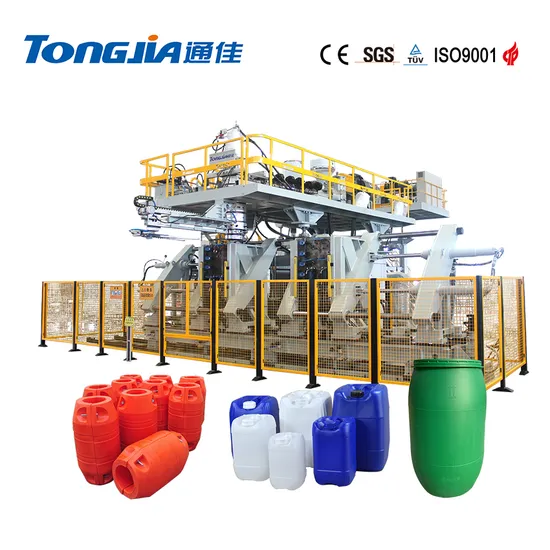

Tongjia 160L 230L plastic barrel drums extrusion blow molding machine
Tongjia TJ-HB160L-230L series blow molding machine is a new generation of fully automatic blow molding machine
specially developed for 120-220L closed barrels and open barrels. The equipment adopts hydraulic servo control, which
is energy-saving and effective. It produces single-ring barrels, The double ring barrel is of good quality.
Tongjia TJ-HB160L-230L series blow molding machine adopts storage die head, new runner design, fast color change,
multi-layer die head can be made according to customer requirements. The equipment adopts a mold shifting system to
move back and forth to avoid the inconvenience caused by the movement of the overall extruder platform, and it is more
convenient to change the mold.
Clampingsystem | Diagonal double tie bar center clamping bi-diredional synchronous high precision linear guideway clamping device |
Injection system | DC speed control + Hardenedface gear reducer |
Die system | Special steel center-feeding die |
Hydraulic system | All imported hydraulic valve +hydraulic servo control system |
Control system | Imported PLC + Europe imported complete machine control system (GEFRAN from Italy ) |
Parameters |
Specifications | Units | TJ-HB160L | TJ-HB230L |
Max. product capacity | L | 160 | 230 |
Machine dimension | m | 6.5x4.1x4.0 | 8.4x4.9x5.5 |
Machine weight | Ton | 20 | 38 |
Clamping Unit | | | |
Mold platen size | mm | 1020x1250 | 1320x1600 |
Power | | | |
Total power consumption | KW | 171 | 248 |
Avenrage power consumption | KW | 100 | 145 |
Extruder unit | | | |
Screw diameter | mm | 100 | 120 |
Plasticising capacity | kg/hr | 180 | 280 |
Screw heating power | KW | 25 | 36 |
Extruder driving power | KW | 90 | 132 |
Die-head | | | |
Die head heating power | KW | 22 | 45 |
Accurroujator capacity | L | 16 | 25 |
