US$11,600.00-12,800.00
|
1 Set
(MOQ)
|
Basic Info.
Cooling Method
Water Cooling
Transport Package
Plywood Box
Specification
841*490*772mm
Trademark
QIANGYUAN LASER
Production Capacity
1500sets/Year
Packaging & Delivery
Package Size
120.00cm * 56.00cm * 95.00cm
Package Gross Weight
205.000kg
Product Description

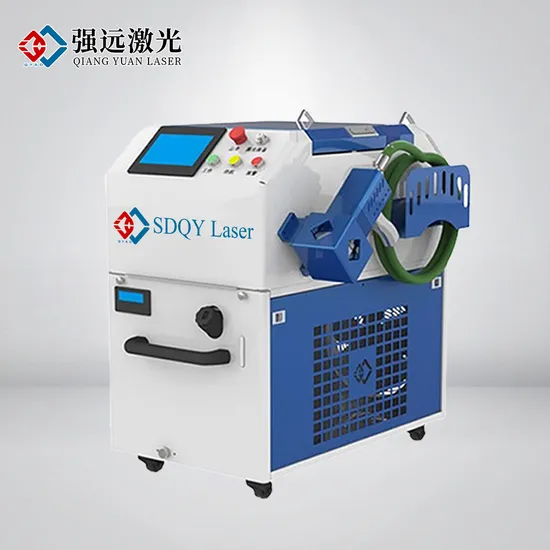

Laser Mold Polishing Machine 200W 300W 500W 1000W Portable Pulse Laser Cleaner Metal Rust Surface
Enlisting Agents
Product Description
Using MOPA pulsed fiber laser, a variety of pulse waveform selection, to meet the cleaning of different materials. The single pulse energy is large, the cleaning efficiency is high, the spot energy distribution is uniform, and the cleaning does not damage the substrate. The chassis structure is easy to integrate and has a large processing range.
It can non-destructively remove oil, corrosion, paint and other pollutants on the metal surface, which is green environmental protection pollution-free.
Product Parameters
Model | QYCL-FP200A | QYCL-FP300A | QYCL-FP500A | QYCL-FP1000A-15 | QYCL-FP1000A-50 |
Average laser power (w) | 200~220 | 300~320 | 500~520 | 1000 | 1000 |
Single pulse energy (mj) | 13 | 50 | 15 | 50 |
Weight of hand-held head (kg) | 1.5 |
Rated power (kw) | 2.5 | 3 | 5 | 9 |
Power adjustment range (%) | 10-100 |
Width of scanning (mm) | 10-100 |
Focal length (mm) | 100/160/254/330/420 |
Central wavelength (nm) | 1060~1070 |
Cooling method | Water Cooling |
Fiber length (m) | 5m (Optional 10m) | 5m | 10m |
Type of laser source | Pulsed fiber laser |
Dimension of machine (mm) | 841*490*772 | 1240*510*1040 |
Weight of machine (kg) | 144 | 205 |
Package size (mm) | 1200*560*950 | 1360*600*1405 |
Package weight (kg) | 205 | 267 |
Power supply | 220V | 380V |
Advantages
Gaussian Beam:
-Gaussian beam has a typical Gaussian power distribution, that is, the center brightness is high and the edge brightness is low.
-Gaussian beam can form a relatively small light spot on the surface of the object, so it can provide high beam focus and energy density, thereby improving the cleaning effect.
Top-hat / Flat-top:
-Top-hat beams have a more uniform power distribution, that is, the power is evenly distributed throughout the entire spot area. It can form a uniform light spot on the surface of the object, so it can cover a larger cleaning area and have a faster cleaning speed.
- Top-hat laser cleaning machine is suitable for some scenarios that require high cleaning speed.
Application
Certifications
Company Profile
SDQY Laser factory is an enterprise with strong research and development capabilities and advanced technology. It has a variety of high-performance products in the field of laser cleaning, including pulse laser cleaning machines and continuous laser cleaning machines.
FAQ
1: What Types Of Products Do You Have?
We mainly sell four types of laser products: laser cleaning machine, laser welding machine, laser cladding machine, and laser cutting machine.
2: How Do I Choose The Most Suitable Machine For Me?
- You can tell us your specific needs: industry, materials, photos, etc. - Do you have a purchase budget? Do you need pre-sales proofing test? We will recommend the most suitable products to you according to your budget and clear requirements.
3: This Is My First Time To Buy This Kind Of Machine. Is It Easy To Use?
The operation is very simple. Most of our customers mastered the use skills within one single hour. We will send you the english version(language is customizing) of user manual and operation guiding video, as well as we can train you through remote online video chatting.
>>
