PE/PP Single Wall Corrugated Pipe Extrusion Line/Plastic Extruder Machine

Product Description

Product Description
1. Material: PVC PE PP
2. Diameter 16-50mm
3. Speed: 1-15m/min

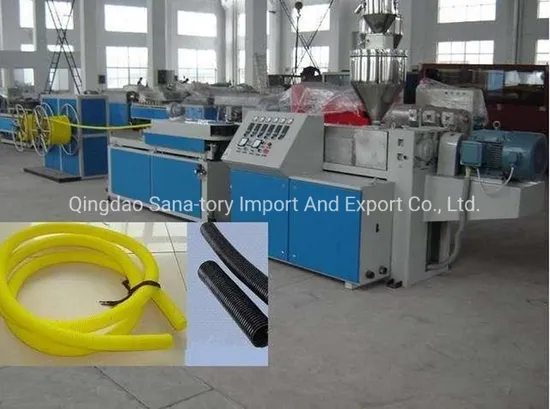

PVC/PE/PP corrugated pipe production line:
Our plastic pipe production lines mainly include extruder, moulds, vacuum forming units, spray cooling tanks, multi-claw haul off, cutter, pipe rack, also we can supply regarding auxilliary machines, such as mixer, pipe belling machine, screw feeder, hopper dryer, etc. All electric components are from famous world brands.
Machine consist of:
Loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder

Detailed Photos
Product Parameters
Main technical parameters:

Production pipe range: (mm)	4-10	10-16	16-40
Output(kg/h)	8	20	60
Main machine	SJ-30/30B	SJ-45/30B	SJ-65/30B
Die block(couple)	40	42	42
Production speed(m/min)	5-10	5-15	5-10

Our Advantages
This series single wall corrugated pipe extrusion line can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.Use of PVC/PE single wall corrugated tube pipe:The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.Single-wall corrugated tube pipe machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.

1. High output: Ensure you the highest output as compared with other supplier.
2. New technology gear box: High torque gear box, one body design, two cooling system.
3. Screw and barrel: Bi-metal material ensure longer working life, ensuring running non-stop 24 hours /day.
4. Energy saving heater: Heater on the barrel is energy saving type by 15%.
5. HYPET PLC control system: With operation easy, management full, energy saving and counting, and intelligent control system.
6. Pipe brighten device: To make the pipe shining and smoothing.
7. Vacuum tank stainless steel 304: Water level and temperature controlled automatically.
Company Profile
Packaging & Shipping

Exhibition
FAQ
1. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;2.What can you buy from us?Plastic Sheet/Board Products, Plastic Pipe Production Line,Plastic Sheet Production Line,Plastic Profile Production Line etc.3. Why should you buy from us not from other suppliers?Qingdao Sana-tory Import and Export Co., Ltd is a professional company specializing in the design and manufacture of plastic machines, such as single screw extruders, conical twin screw extruders, PVC, PE, PP and PP-R pipe extruders, PVC and PE profile extruder.
4.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment

---
