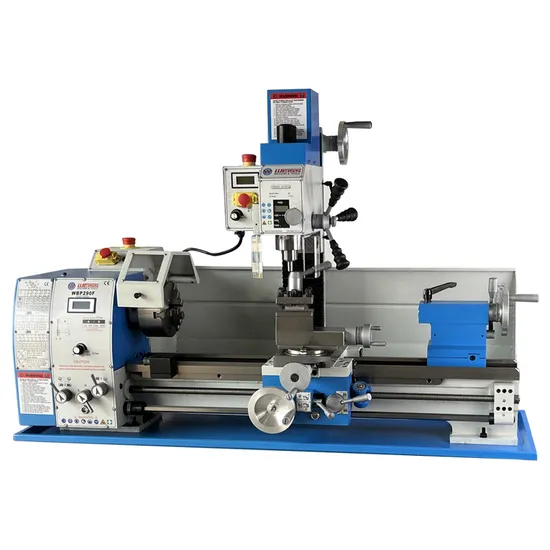

Weiss WBP290f Bench Lathe From China Factory

Product Description

Recommended Products
VM25L WBL290F WBP250F

1. An excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.
2. WBP290F adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one. It fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling, chambering, boring, and facing
3. D1-4 camlock spindle make swapping chucks a lot easier, more precision
4. Power cross feed is available
5. Super smooth and quiet running machine
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBP290F
ITEM NO	10110316	160MM 3-JAW Chuck	Steady Rest
Distance between centers	750mm	Chip Tray	Follow Rest
Swing over bed	Ø290mm	Splash Guard	Face Plate
Swing over cross slide	Ø165mm	Toolbox and Tools	4-Jaw chuck 160mm
Width of bed	180mm		Threading Diail
Taper of spindle bore	MT5		2-Axis DRO (Magnetic Scales)
Spindle bore	38mm		Stand
Number of spindle speeds	Variable		Luxury Stand
Range of spindle speeds	50-2000rpm		Quick chage Tool Post (TOOA1)
Range of inch threads (imperial version)	8-56 T.P.I		Turning Tools
Range of metric threads (metric version)	0.2-3.5mm		ER25 coller chuck for lathe
Top slide travel	60mm		ER25 collet chuck of mill
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT3
Motor (brushless)	1500W
Mill and Drill
Taper of tailstock quill	MT2
Spindle stroke	50mm
Spindle speed	50-2250rpm
Max.Distance spindle to table	375mm
Max.Distance spindle to column	185mm
Motor	750W
Packing size	1400x780x1070mm
Net weight	230kg

Detalis
Electronic Driving System
· WBL290F has 2HP POWERFUL brushless motor for lathe and 1.5HP brushless motor for mill with silent running
· High quality electronics used throughout machine for long term reliability
· Braking resistors increase the stability of the electrical system
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users
Change Gear: Equipped with protective QKS8 door swtich,
All metal gears
Providing 21 kinds of inch threads and 12
kinds of metric threads cutting
Gearbox:Separate leadscrew and feed rod, 3 kinds of feeding speeds Tailstock:with quick lock handle,drive hub,draw-down alignment

3-Jaw Self-centering Chuck Power longitudinal & cross feed Guideway induction hardened, precision ground

4-Way Tool Post Cross Slide with T-slot Table Metric/ Imperial Threading Dial
· Variable speed enables to operate easily
· Spindle is supported by high precision taper roller bearing
· Spindle RPM can be monitored on the digital readout.
· Spindle movement can be monitored on depth ruler in both inch or metric way
· Single speed belt drive system provides more quiet and easy operation, avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)
· Tooth Belt provide strong and precision transmission
· Precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"
· A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator

Mill head can be tilted 90 degrees Adjust the mill head angle
Tool& Toolbox
Factory and Delivery
Certificate
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.

---
