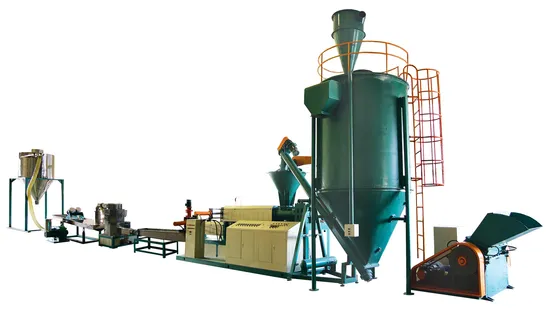

High-Efficiency Recycling Machine for PS Foam Waste Processing

US$30,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HLFSJ-150/100
Material Processed
Foam
Plastic Type
EPS
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Capacity
180-220kg/H
Inlet Width of Grinder
1420mm
Grinder/Crusher
Included
Max. Delivery of Blower
50meters
Installed Power
144kw
Transport Package
Standard Packaging
Specification
20x3.5x6.1m
Trademark
Holin
Origin
China
Production Capacity
10sets

Packaging & Delivery

Package Size
2000.00cm * 350.00cm * 610.00cm
Package Gross Weight
10000.000kg

Product Description

Plastic Recycle Machine --- Die-Cutting EPS Recycle Machine with big output. Experience the ultimate in recycling efficiency with our cutting-edge technology, delivering impressive production capacities.
Machine Features
-- Big silo with cyclone separator device. Engineered for optimal material handling and separation, ensuring a streamlined recycling process.
-- Equipped with wide inlet grinder, blower, the max. transport distance is 50m. Achieve extensive material transportation effortlessly with a powerful grinding and blowing system.
-- Primary extruder and secondary extruder are all with hydraulic screen changer. Enjoy seamless transitions and enhanced efficiency with state-of-the-art hydraulic screen changers.
-- With die-cutting type and straight cutting type. Versatility at its best: choose between precision die-cutting or straight cutting to suit your recycling needs.
-- Easy operation, stable performance, high quality and high automation, etc. User-friendly and reliable, offering exceptional quality and advanced automation for superior results.
-- With reducing screw. Experience precise material compaction and reduced wastage with an innovative reducing screw design.


Specification

Model HLFSJ-150/100
Capacity

180-220kg/h

Power

144KW

Cooling water

0.3-0.4Mpa

Screw L/D

18.7/1(First screw); 11:1(Second screw)



Different Models
Model Parameters Unit HLFSJ-80 HLFSJ-130 HLFSJ-150/100 HLFSJ-190/150
Capacity Kg/h 30-50 100-180 180-220 300-400
Inlet width of crusher mm / 1100 1420 1420
Power of crusher kw / 22 30 30
Max delivery of blower m / 50 50 50
Power of blower kw / 4 4 5.5
Volume of Silo m2 / 9 9 9
Diameter of the primary screw mm 80 130 150 190/150
L/D / 18 18.5:1 18.7:1 21.4:1
Diameter of the secondary screw mm / 100 120 130
L/D / / 11:1 11:1 12:1
Installed power kw 50 90 144 261
Cooling water pressure Mpa 0.2 0.3-0.4 0.3-0.4 0.3-0.4
Installation size(LxWxH) m 6x1.5x1.9 17x3.5x5.5 20x3.5x6.1 20x3.5x6.1
Weight T 2 8 10 12


Photos
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Count on us for superior protection and peace of mind throughout your goods' journey.



FAQ
1. Q: What material can this machine process? A: It can process EPS, foam PS. Unlock new possibilities in material recycling with our advanced machine, expertly designed to handle EPS and foam PS with ease.
