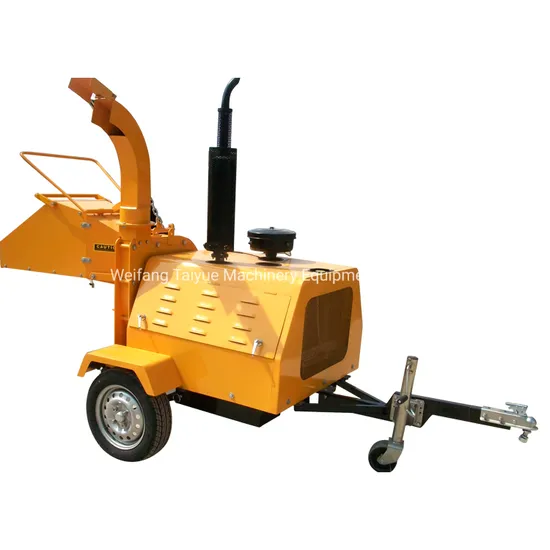

CE Approved Trailer Mounted Wood Chipper for Trees, Diesel Engine Wood Chipper Big

Product Description

Product Description
Diesel wood chipper is widely used on medium and big forestry work,like tree,branches,wood chipping.
It has many advantaged
1 CE approved,reliable quality
2 engine opotion,18-50hp diesel engine,multy
3 with towing bar,easy transport
4 hydraulic feeding system
5 max 8 inch chipping capacity
Detailed Photos
Diesel wood chipper detailed photos
Product Parameters
Diesel wood chipper specification

Model	DWC18/22	DWC40	DWC50
Engine Model	Changchai	changchai490	Changchai4L68
Type	Single cylinder, horizontal, 4-stroke	vertical,water cooled,4-stroke,direct injection	vertical,water cooled,4-stroke,direct injection
No.of cylinders	1	4	4
Bore*Stroke		80*90mm	80*90mm
Rated power/rev.	16.2KW/2200rpm	29/2200rpm	29/2200rpm
Total displacement	1.194L	1.809L	1.909L
Starting type	Electric start	Electric start	Electric start
Chipper capacity (diameter)	8 inch	8inch	8inch
Feeding system	full hydraulic (forward, stop and reverse adjustable)	full hydraulic (forward, stop and reverse adjustable)	full hydraulic (forward, stop and reverse adjustable)
Rotor plate size	60cm	60cm	60cm
Rotor plate weight	85kg	85kg	85kg
Knives number	1 stationary knife; 2 rotor knives	1 stationary knife; 2 rotor knives	1 stationary knife; 2 rotor knives
Dimensions (to hopper discharge)	1400L*1450W*1400H(mm)	1700L*1450W*1400H(mm)	1700L*1450W*1400H(mm)
Feed hopper inner opening	20*22cm	20*22cm	20*22cm
Discharge hood height	200cm	200cm	200cm
Rated rotary speed	1200RPM	1200RPM	1200RPM
Total Weight	680kg	720kg	780kg
Working efficiency	8-11cbm/h	9-12cbm	10-12cbm/h

Packaging & Shipping
Diesel wood chipper packaging and shipping
Company Profile
Weifang Taiyue Machinery Equipment Co., Ltd. is an expert agriculture machinery manufacturer, Based on facilities covering 20, 000
square meter and assets amounting USD10 million. The main products are: wood chippers, include diesel wood chipper tractor wood chipper
and gasoline wood chipper,tractor backhoe trencher, seeder, farm trailer, baler machine, hay mower, hay rake, plough, harrow, and otheragro implements, etc., which can be customized and processed according to the special requirements of customers, or OEM productioncan be provided.
With good quality product, reasonable price, and best after-sale service, we have gained good reputation from all over the world, such as
Europe, North,America, Central and South America, Africa, Australia, New Zealand eg contiments and countires.
After Sales Service
We supply 18 months warranty,any problem,free part send by air.
We can also do OEM machines for your needs,such as logo,industrial tire,package ,main part eg.
For small quantity,delivery time is 10-15 days.

Certifications
FAQ
Q. Are you factory or trading company ?
A: we are factory for tractor and implements,we can supply different kinds of solution for agriculture with reliable quality
and good price machines.
Q.Which payment can be acceptable ?
A: We could accept the payment by T/T, L/C etc.
Q.How about your production quality and delivery time?
A: We only do long time business coporation by supplying reliable quality,every production will be tested many times
before delivery,and can delivery goods in 10-15 days if small quantity.
Q. How about your company's service?
A: Our company supply 18 months warranty,any problem except operation mistake,will supply free part ,if needed ,will
send engineer to solve this problems overseas.We can also supply the part for machines that used for 6 years,so customer
do not worry machine use in future.
Q: Can you accept customer logo eg requirent?
A:Yes,we can do as customer needs,make logo or label for customers,OEM is availible.

---
