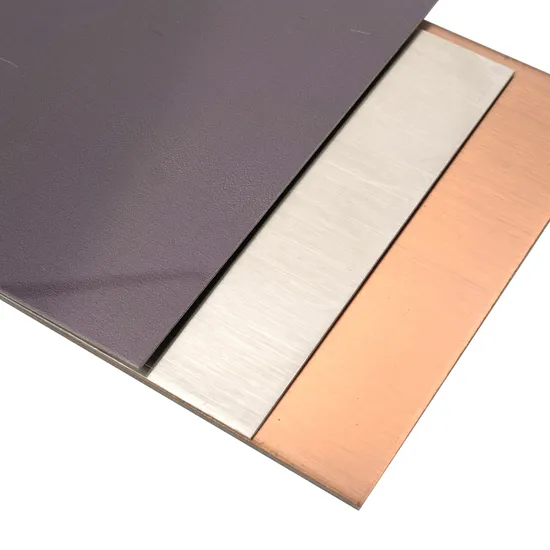

| Item Name: | Stainless Steel Sheets (Plates) | ||||||||
| Grade of Material: | AISI 201, 304, 304L, 316, 316L, 430, etc. | ||||||||
| Certificate: | ISO 9001: 2008 | ||||||||
| Dimension: | as per your request | ||||||||
| Wall Thickness: | 0.3 mm - 15.0 mm | ||||||||
| Surface: | 2B, BA, Hairline, Satin, 8K (Mirror) | ||||||||
| Packing: | PVC Bag, Weaving Bag, Wooden Case, etc. | ||||||||
| Application: | Decoration, construction, building, furniture, kitchen, etc. | ||||||||
| Chemical Composition: | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | \ | |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ | |
| AISI 304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | \ | |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| AISI 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.035 | ≤0.03 | ≤0.60 | 16.00~18.00 | \ | |
| Mechanical Property: | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2%N/m m³ | Hardness (HV) | ||||
| AISI 201 | ≥35 | ≥520 | ≥210 | ≤253 | |||||
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 304L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
| AISI 316 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
| AISI 430 | ≥35 | ≥450 | ≥180 | ≤200 | |||||
