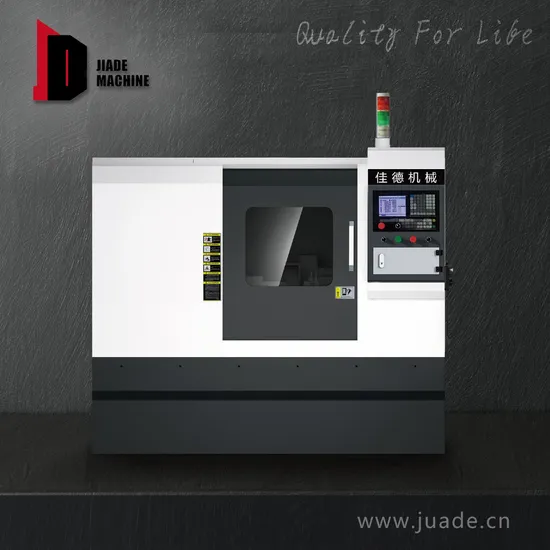

CNC Center Cutter Votex Pointing integrated Grinding Machine equipped with a new generation of 700Y self-developed CNC system, grinding wheel feed axis, workpiece rotation axis, workpiece indexing axis, automatic feed, discharge device. It has characteristics of high-precision and high-efficiency, to achieve the advantage of votex and pointing one time completed
| Model | ZJCMX4/CNC Center Drill Vortex Pointing integrated Grinding Machine Model NO.ZJCMX4 |
| Tool size | 3mm-13mm |
| Machine construction | Single column |
| Axis of motion | X-Axis:300mm |
| Y-Axis:300mm |
| Z-Axis:300mm |
| A-Axis:360° |
| Tool length | 150mm |
| Grind wheel diameter | Inner75mm Outter250mm Thickness25mm |
| Spindle type | High-precision electrical spindle |
| Drive system | Pin roller lead screw,direct drive |
| Electrical power | 10KVA |
| CNC data | 700 bus CNC,High-speed SSD,MECHATROLINK protocol, NXP-Rt1176M7 main controller |
| Machine body | High-performance cast iron |
| Machine size | Length:2100mm |
| Width:1660mm |
| Height:2050mm |
| Weight:3000kg |
