400liter High Shear Emulsifying Mixing Tank Vacuum Heating Tank

Product Description

400 Liter emulsifying tank vacuum emulsion mixing tank
300Liter tank / high shear vacuum heating tank comes with a high shear mixer / homogenizer, a stainless steel vessel with build-in oil heating system, temp. controller, vacuum pump as well as the related pipe and fittings between the vessel and the vacuum pump.
option function
1. 0~3000rpm variable speed emulsifying mixing, bottom mounting
2. top mount high shear mixer / homogenizer 1.5kw to 11kw
3. scraper mixing 36rpm / 0~36rpm, 60rpm,
4. variable speed controller
5. steam jacket, electric jacket
6. temperature controller
....
custom case:

Items		G-FL 300
Power supply		380V 50Hz 3phase
Tank body	Full capacity	370 Liter
	Working capacity	300 Liter
	Inner diameter mm	Φ800
	Round part height mm	500
	Insulation	2 inch PU
Material & Thickness	Inner wall	SS316L 4mm
	Heating jacket	SS304 3mm
	Outer wall	SS304 1.5mm
Heating system	Heating medium inlet pipe Size	1"
	Heating type	Electric heating
	Heating power	5kw×4Nos
	Temperature control	Automatic temp. control Digital temp. display
Homogenizer	Motor power	4kw
	Agitator speed	2980rpm
	Type	Claw type rotor & slotted stator
	Contact material	SS316L
Vacuum system	Max vacuum	-0.86Mpa
	Motor power	1.1kw
Accessories	Vacuum pipeline, one-way valve Vacuum type pressure valve Vacuum break valve
Occupied area	L×W×H	1500×1000×1700mm
Unit price	Please contact our online team to get the latest price

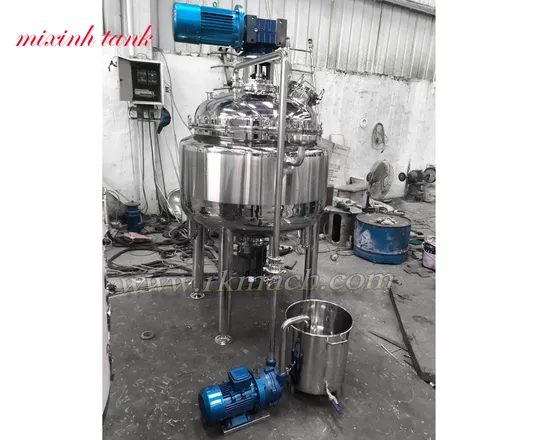

product pictures

---
