Stainless Steel Beer Fermentation Tank

Product Description

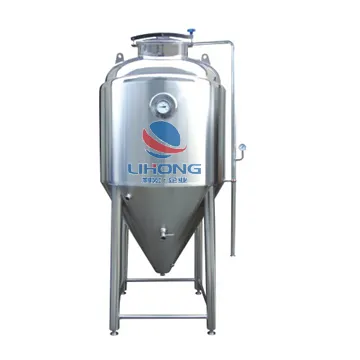

Beer Fermentation Tank
1. Usage
This Fermentation Tank is widely applied in beer production line. It can be used as both fermentation tank and storage tank.

2.Constructure and advantage
1) The tank has dish top, cylinder body and 60-70° cone bottom. The tank body has interlayer and cooling jacket. The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm. The temperature insulation material adopts high efficiency polyurethane foam.

2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

3) It is equipped with devices including manhole, air respirator, cleaning ball, sanitation inlet, sampling valve, thermometer, pressure gauge, viewing mirror, and viewing lamp. The fermentation process of beer, fine chemical engineering and biological products is aseptic and untainted.

4) Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.

The parts that contact materials are all made of stainless steel SUS304. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard.
The tank uses tri-clover connection for the sockets.

Capacity	300L-20,000L
Application	Winery and brewery storage and fermentation
Material	SUS304-2B, or SUS316L
Construction	a. Dimple pad cooling jacket in the tank body and conical bottom, efficiently cooling the tank in all the parts b. Cooling exchanging areas are available in different design c. Conical bottom in 60 degree(70 or 90, due to different design) , it is design for the yeast fermentation processing d. Temperature insulation: PU foam
Socket	Manhole, CIP hole, temperature probe, sampling socket, etc

Warranty: One year after receiving equipment, offer life long after sale service.
Installation and commissioning: We can send professional engineer to install and commission the equipment.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons.
Inspection: the third party inspection company or yourself to inspect the products before shipment.
Documentation: User manual, Maintenance manual, Equipment test report, etc.
FAQ:
1. Are you a factory or trading company?
We are a factory
2. How long is the warranty period?
One year
3. What's the main market of your company?
We have customers all over the world
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
