High Precision Small CNC Milling Machine Xk7124b for Metal Prosessing

Product Description

Product Description

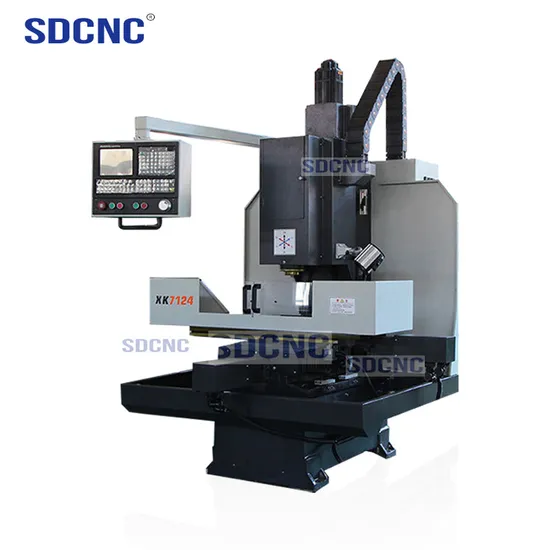

XK7124 China Small CNC VMC Vertical Milling Machine for sale
Features:
1.Manual and pneumatic Tool Change available
2.Stand and body separately designed
3.Semi-protection.
4.Steel welded stand and cast iron stand available
5.Big size oil collecting assuring ground cleaning.
6.Suitable for Box parts , shell parts, disc-shaped parts machining.
7.Tool released and clamped pneumatically for model
Product Parameters

Specification		XK7124B
Worktable size length(mm)×width(mm)		1000×240
T-slot quantity-width(mm)		5-14-44
The max loading weight(kg)		200
X axis stroke(mm)		500
Y axis stroke(mm)		350
Z axis stroke(mm)		450
The distance from end face to worktable surface (mm)		80-530
Teh distance from spindle ctnter to column surface(mm)		310
Spindle tapper		BT40
Spindle speed (Rpm)		6000
Main motor power (kW)		3.7K(servo)
Feeding motor	X axis torque(N.M)	6(servo)
	Y axis torque(N.M)	6(servo)
	Z axis torque(N.M)	10(brake automatically)
Quickly moving speed(m/min.)		4000
Cutting feed speed(mm/min)		1-4000
Screw specification(diameter mm/screw pitch mm)		32/6
Accuracy	Position accuracy (mm)	0.01
	Repeat position accuracy(mm)	0.008
Machine weight kg		1500kg

The machine standard accessories :

Item	Name	Specification	quantity
Standard accessories	Collect chuck shank	BT30	1PCS
	Milling chuck		1SET(8 pcs)
	Rivet		1PCS
	Hook spanner		1pcs
	Inner hexagonal spanner		1set

---
