Fully Automatic Vertical Silk Screen Printing Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.

TAM-Z2

Structure

Flat-bed cylinder press

Color & Page

Single-Colour Printing Press

Application

Packaging Printing

Print Interface

USB2.0

System Supported

Windowsxp32

Certificate

Warranty

Screen Printer 18 Months, LED UV Machine 24months

Condition

New

Usage

Membrane Switch, Sheet Metal, Plastic, EL Pannels

Delivery Detail

Within 30 Days After Order Confirmation

After-Sales Service Provided

Engineers Available to Service Machinery Overseas

Power

380V 3phase or Single-Phase 220V

Printing Area

300*450mm

Table Size

400*450mm

Consumable

Squeegee, Aluminium Screen Frame, Silk Screen Me

Transport Package

Plywood Case/Wooden Case/as Required

Specification

1330mmX1000mmX1750mm

Trademark

Tamprinter

Origin

China(Mainland)

HS Code

8443198000

Production Capacity

30sets/Month

Product Description

TAM-Z2 Fully Automatic Vertical silk Screen Printing machine
Video link click here:
https://youtu.be/VIo4ylngVFU
Technical parameters:

Item	Description
TM-3045Z Vertical screen printer with robot arm	Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure(Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs,tinge 320mm---1pcs; clamp 450--1pcs,tinge 470mm--1pcs. Tool box
TM-UV400-L varnish Machine	Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp(KW/2pcs)5.6 Driving power(W) 60 Total power(KW) 13 Dimension(LWH) 42007001200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator

Performance & Features

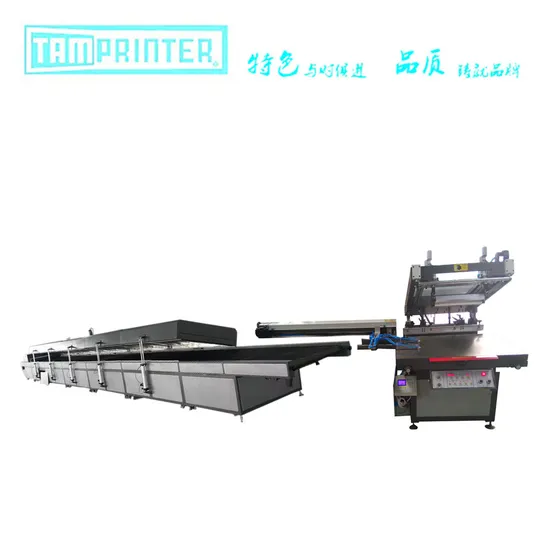

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
Pls contact us for more information!
Please Feel free to email with us or call us directly (Phone +86 1599 4744 161)
We will reply you ASAP.
