Electricity clamping radial drilling machine Z3040X14/II Automatic feed radial drilling machine

Product Description

Electricity clamping radial drilling machine Z3040X14/II Automatic feed radial drilling machine Product Description

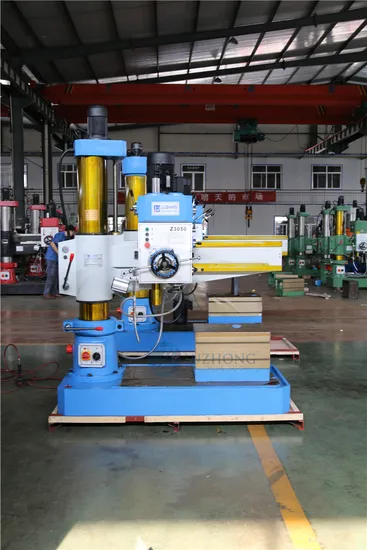

Detailed Photos
Product Parameters
The main performance characteristics:
Mechanical transmission
Electricity column clamping
Mechanical speed
Electricity take-off and landing ,spindle positive and inversion
Automatic feed
Product main technical parameters:

SPECIFICATIONS	Z3040×14/II
Max.drilling dia (mm)	cast iron 40 / Steel32
Distance from spindle nose to table surface (mm)	260-1050
Distance from spindle axis to column surface (mm)	360-1400
Spindle travel (mm)	200
Spindle taper(MT)	4
Spindle speeds range(r.p.m)	40-1250
Spindle speed steps	6
Spindle feeding range(mm/r)	0.10-0.25
Spindle feeding steps	3
Rocker rotary angle (°)	±90°
Main motor power( kw)	2.2
Movements motor power (kw)	1.5
Weight (kg)	2200
Overall dimensions (mm)	1800×810×2200

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
