Woodworking Machinery Double Round End Tenoner Machine Rounding off Tenoning Machine Makes Tenon on Both Ends Custom

Product Description

Product Function

CNC DOUBLE END TENON MACHINE
MSK2218-C full automatic tenon machine is a double end automatic tenon equipment. Automatic feed, and has advanced numerical control system. Simple operation, easy adjustment, high degree of automation. Automatic clamping positioning, double end processing at the same time, reduce the labor intensity of workers accurately and efficiently.


It can process tenons of various shapes such as square, rectangular, waist round, circular, and diagonal joints, and is widely used for tenon processing in doors, windows, tables, chairs, furniture, and other areas.

Product Specification

No	Item	Data
1	Processing tenon between specifications	2200mm(longest), 110mm(shortest)
2	Working width	180mm(widest)
3	Working thickness	70mm(thickest)
4	Processing tenon	40mm(longest)
5	Horizontal swing angle	+13°~-45°
6	Vertical swing angle	+45°~-12°
7	X axis servo motor power	1.0kW*2
8	Z axis servo motor power	1.0kW*2
9	C axis servo motor power	0.75kW
10	A axis servo motor power	0.4kW*2
11	Y axis servo motor power	0.4kW*2
12	Spindle motor power	5.5kW*2
13	Total equipment power	16.85kW
14	Spindle speed	12000r/min
15	Voltage	380V
16	Weight	2200kg
17	Dimensions	4750*2000*1690mm

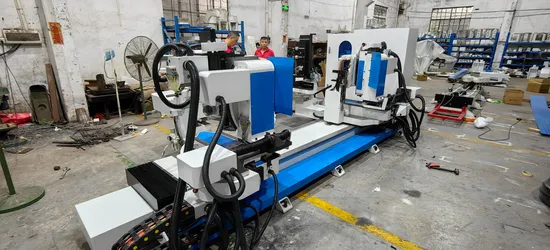

Detail Photos

Factory

Warrenty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day
2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included.
3.24 Hour technicial support by email or calling
User-friendly Englishi manual for machine using and maintaining.

---
