Max Table Travel and Big Torque Small RAM Milling Machine Xili Brand

Product Description

max table travel and big torque small ram milling machine XILI brand

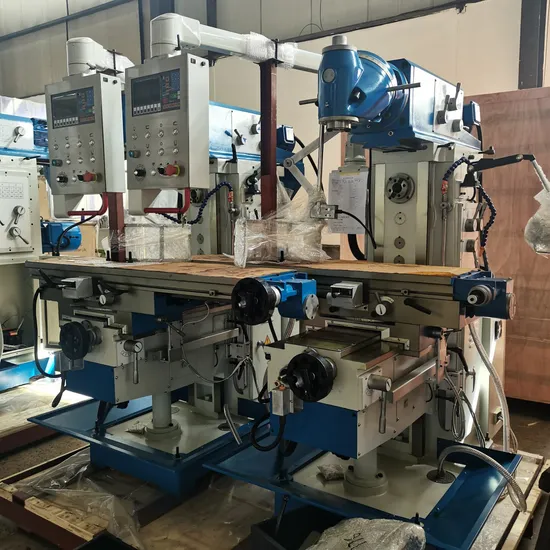

Detailed Photos
√ universal swivel head can swivel 360°, vertical & horizontal milling are available √ spindle is driven by gearbox directly, ensures powerful milling
√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise
1). 360° swivel head, ensures vertical & horizontal milling 2). spindle driven by gearbox directly, ensures powerful milling
3). X/Y/Z axis movement of work table is driven by servo motor, good reliability

√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C lever select +/- feeding direction)
√ brief design control panel, easy to operate
√ water cooling system, lubrication system are included
Product Parameters

ITEM	UNIT	XL6230	XL6230A	XL6230B	XL6230C
Table size	mm	1270*300	1370*300	1270*300	1370*300
Table travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Table feed (X/Y/Z)	mm/min	30-830 / 30-830 / 23-625
Table rapid speed (X/Y/Z)	mm/min	1335/1335/1000
Spindle taper		IS040
Distance between spindle nose and table surface	mm	100-500
Spindle speed range	r.p.m	11 steps, 45-1660rpm
T Slots		3/14/80
Main motor power	kw	2.2 or 3kw
Feed motor torque	N.m	10
Overall size	mm	1730*1760*1700	1830*1760*1700	1730*1760*1700	1830*1760*1700

Packaging & Shipping

Delivery time: generally 60 days production time after confirmation of order Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet) Delivery type: 20GP container is enough to load
Certifications

Configuration

standard configuration
1	lubrication system with manual oil pump	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	supporting frame for horizontal milling	-
5	draw bar	-
6	mill cutter shank	ISO40, φ27
7	milling chuck with collects	ISO40, 8pcs
8	machine vise	5"
9	tools & metallic tool box	-

optional configuration
1	3-axis digital read out	-
2	dividing head	F11100A
3	rotary table	160mm
4	machine vise	6"
5	milling chuck with collects	ISO40, 15pcs
6	clamping kits	-
7	new design aluminum hang arm	-
8	spindle protection guard	-
9	worktable protection guard	-
10	LED work lamp	-
11	automatic centralized oil lubrication	-
12	Schneider electric components	-

Company Hot Products Link

FAQ
1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)6. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.Welcome your inquiry and visiting.

---
