Factory supply Leemin Hydraulic Return Line Oil Precision Filter RFA-630*20F-Y high precision hydraulic oil filter housing RFA series return oil filter housing

Product Description

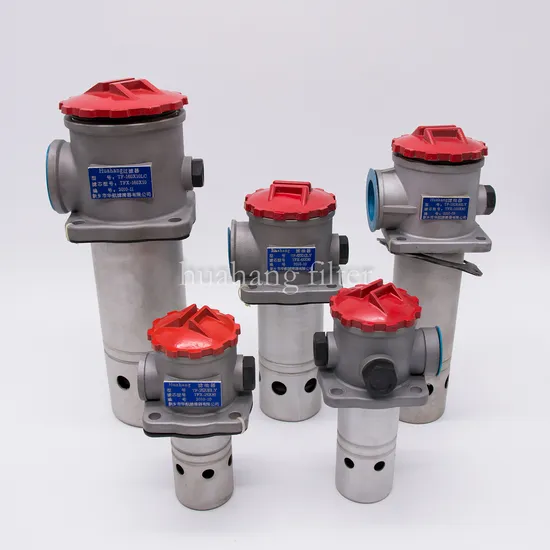

Factory supply Leemin Hydraulic Return Line Oil Precision Filter RFA-630*20F-Y high precision hydraulic oil filter housing RFA series return oil filter housing Product Description This filter is used for precision filtration of hydraulic system return oil, filtering out metal particles generated by component wear in the hydraulic system and rubber impurities in sealing components, etc., to keep the oil flowing back to the tank clean. This filter is installed on the top of the oil tank, with the cylinder partially immersed in the tank, and equipped with bypass valves, diffusers, filter element pollution blockage detectors, and other devices. It has the characteristics of compact structure, easy installation, large oil flow capacity, low pressure loss, and easy replacement of filter elements.
Performance and characteristics:
1. Easy installation and connection, simplifying system pipelines
2. Set up filter pollution detectors and oil bypass valves to improve the reliability of hydraulic systems
3. The design adopts a direct return oil filter, making it very convenient to replace the filter element or add oil to the tank
4. Equipped with liquid flow diffuser
5. The filter element is made of glass fiber filtering material
How to use it?
The filter is installed at the top of the fuel tank, and the cylinder portion is immersed in the oil tank, and a bypass valve, a diffuser, a filter element for clogging the transmitter, and the like are disposed. The utility model has the advantages of compact structure, convenient installation, large oil passage capacity, small pressure loss and convenient replacement of the filter element.

Model	Flow (L/min)	Filtration rate (um)	Pressure (MPa)	Initial(MPa)		Indicator		(Kg)	Model of element
				Initial	Max	(V)	(A)
RFB-25x*L-c y	25	1 3 5 10 20 30	1.6	≤0.075	0.35	12 24 36 220	2.5 2 1.5 0.25	0.85	FBX-25x*
RFB-40x*L-c y	40							0.9	FBX-40x*
RFB-63x*L-c y	63							1.5	FBX-63x*
RFB-100x*L-c y	100							1.7	FBX-100x*
RFB-160x*L-c y	160							2.7	FBX-160x*
RFB-250x*L-c y	250							4.35	FBX-250x*
RFB-400x*L-c y	400							6.15	FBX-400x*
RFB-630x*L-c y	630							8.2	FBX-630x*
RFB-800x*L-c y	800							8.9	FBX-800x*
RFB-1000x*L-c y	1000							9.96	FBX-1000x*
RFB-1300x*L-c y	1300							11.2	FBX-1300x*

Performance and characteristics
The filter element is made of glass fiber filter material, It has the advantages of high filtration precision, large oil-passing capacity, small original pressure loss and large amount of dirt absorption. Its filtration precision is calibrated with absolute filtration precision, filtration ratio β3, 5, 10, 20, 100, filtration efficiency n≥99%, in accordance with ISO standard
Related products
More model number
RFA-400*20F-Y,RFA-400*30F-Y,RFA-630*1F-Y,RFA-630*3F-YRFA-400*20F-Y,RFA-400*30F-Y,RFA-630*1F-Y,RFA-630*3F-Y RFA-400*20F-Y,RFA-400*30F-Y,RFA-630*1F-Y,RFA-630*3F-Y RFA-400*20F-Y,RFA-400*30F-Y,RFA-630*1F-Y,RFA-630*3F-Y
SRLF-60×1P SFX-60×1
SRLF-60×3P SFX-60×3
SRLF-60×5P SFX-60×5
SRLF-60×10P SFX-60×10
SRLF-60×20P SFX-60×20
SRLF-60×30P SFX-60×30
SRLF-60×40P SFX-60×40
SRLF-110×1P SFX-110×1
SRLF-110×3P SFX-110×3
SRLF-110×5P SFX-110×5
SRLF-110×10P SFX-110×10
SRLF-110×20P SFX-110×20
SRLF-110×30P SFX-110×30
SRLF-110×40P SFX-110×40
SRLF-160×1P SFX-160×1
SRLF-160×3P SFX-160×3
SRLF-160×5P SFX-160×5
SRLF-160×10P SFX-160×10
SRLF-160×20P SFX-160×20
SRLF-160×30P SFX-160×30
SRLF-160×40P SFX-160×40
SRLF-240×1P SFX-240×1
SRLF-240×3P SFX-240×3
SRLF-240×5P SFX-240×5
SRLF-240×10P SFX-240×10
SRLF-240×20P SFX-240×20
SRLF-240×30P SFX-240×30
SRLF-240×40P SFX-240×40
SRLF-330×1P SFX-330×1
SRLF-330×3P SFX-330×3
SRLF-330×5P SFX-330×5
SRLF-330×10P SFX-330×10
SRLF-330×20P SFX-330×20
SRLF-330×30P SFX-330×30
SRLF-330×40P SFX-330×40
SRLF-500×1P SFX-500×1
SRLF-500×3P SFX-500×3
SRLF-500×5P SFX-500×5
SRLF-500×10P SFX-500×10
SRLF-500×20P SFX-500×20
SRLF-500×30P SFX-500×30
SRLF-500×40P SFX-500×40
SRLF-660×1P SFX-660×1
SRLF-660×3P SFX-660×3
SRLF-660×5P SFX-660×5
SRLF-660×10P SFX-660×10
SRLF-660×20P SFX-660×20
SRLF-660×30P SFX-660×30
SRLF-660×40P SFX-660×40
SRLF-850×1P SFX-850×1
SRLF-850×3P SFX-850×3
SRLF-850×5P SFX-850×5
SRLF-850×10P SFX-850×10
SRLF-850×20P SFX-850×20
SRLF-850×30P SFX-850×30
SRLF-850×40P SFX-850×40 Certifications
