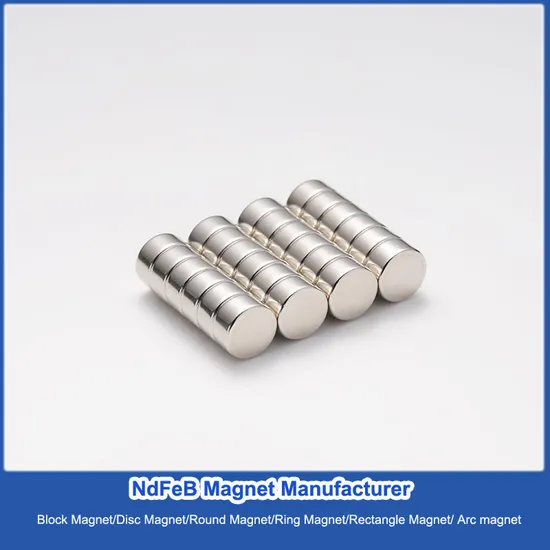

Customized Magnet Manufacturer Magnets 4"/2"/1/2"/1.25"/0.5"/0.25" Ring/Round/Block/Round/Countersunk/Cube Magnets Product Description
| Magnet Parameters |
| Material | Rare Earth NdFeB/Neodymium Permanent Magnet |
| Magnet Shape | Rectangular/Disc/Round/Cylinder/Ring/Cube/Countersunk Hole/Arc Shape/C Shape/Trapezoid shape/Magnetic Ball/Other special shapesh |
| Material Grade | N35-N52 |
| Material density | 7.6 g/cm3 |
| Magnetization direction | Axial magnetization Radial magnetization |
| Magnet coating | Nickel-plated copper-nickel/Black Epoxy/Znic/Au-18K |
Corresponding material temperature resistance working temperature | material grade | maximum operating temperature |
| N25-N55 | 80°C (176°F) |
| N33M~~N54M | 100°C (212°F) |
| N33H~~N54H | 120°C (248°F) |
| N30SH~~N52SH | 150°C (302°F) |
| N30UH~~N45UH | 180°C (356°F) |
| N30EH~~N42EH | 200°C (392°F) |
| N30AH~~N35AH | 220°C (428°F) |
| Magnet Application | Rectangular magnet: linear motor, EV-motor, Sensor; Automatic Door&Window; Lifting Machinery ;Packages |
| Disc/Round magnet: Consumer Electronics, Packages;Magnetic Separator;Magnetic sticker; Magnet Rod; Magnetic Filter; Office Sticker |
| Ring Shape/Countersunk Hole: Stepper motor;Door Latch;Pot Magnet; Fishing Magnet |
| Cube/ball: Toys |
| Arc/C shape/ Trapezoid shape: Elevator Tractions, Smart Motors, Servo Motors, Oilfield Motors, DC Driven Winder Generators, Magnetic Pumps, Textile Motor; Refrigeration Motor |
1, Eason Magnets has been involved in R&D, manufacturing and sales of permanent magnets since the 2011.
2, Supplier of neodymium magnets, ferrite big block, magnetic ball, AlnICo Magnets, Smco Magnets, Fishing Magnets, Pot Magnets.
3, Customized magnet design in terms of composition, magnetic characteristics, shapes, and sizes.
