Bimetallic Bimetal Thrust Washer 24-21-9851

US$3.00
100-499 Pieces
US$2.50
500-999 Pieces
US$1.50
1,000+ Pieces

Basic Info.

Model NO.
24-21-9851
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
ISO9001: 2000
Condition
New
Application
Excavator Bushing
Material
Bi-Metal
Transport Package
Stardand
Specification
30x32x44
Trademark
GTG
Origin
Zhejiang
HS Code
848290000
Production Capacity
30000PCS/Year

Product Description

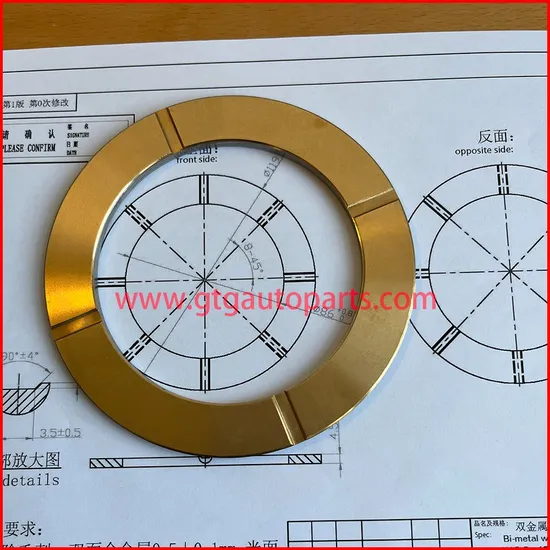

Bimetallic washer is backing on low carbon steel, sintered with CuPb10Sn10 or CuSn6Zn6Pb3 bronze powder, which has the highest load capacity among the bi-metal bushings. the application including balance suspensions of heavy-duty trucks, track roller of bulldozers, auto chassis etc.
It is a kindly of high load and low speed bushing, with wide application.
mechannical performance Load capacity Static load 150N/mm2
Max.Working temperature Grease Lubrication 150ºC
Oil Lubrication 250ºC
PV value limit Oil lubrication 10N/mm2.m/s
Dry lubrication 2.8N/mm2.m/s
Linear Velocity Dry Friction 0.4m/s
Grease Lubrication 2.5m/s
Mating Axis Hardness ≥53 HRC
Roughness Ra-0.32~0.63
Anti-tensile Strength 185 N/mm2
Alloy Hardness HB 70~100
Friction coefficient 0.05~0.22
Themal conductivity 47W/mk
Heat-expansion Coefficient 18x10(-6)/k
