Product Description
Product Description

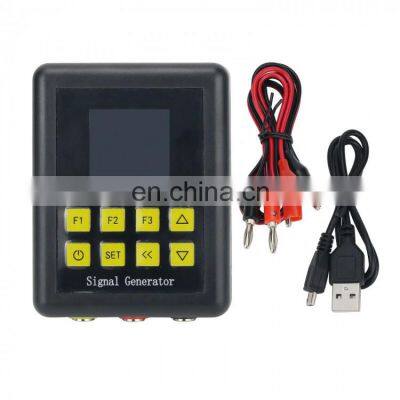

4-20mA 2-10V Signal Source PWM Pulse Sine Wave WFSGS-06 Handheld Signal Generator Module Product Description Description:Handheld multifunctional signal generator enables PWM, pulse, signal source, sine wave, and triangle wave.Product Parameters:- Charging and Power Supply Voltage: USB 5V (when built-in battery is fully charged, it can work continuously for 8 hours, the battery capacity is 1000mAh)- Product Functions: PWM mode, pulse mode, signal source mode, sine wave mode- PWM Mode: voltage, frequency, and duty cycle are all adjustable, with frequency accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%- Pulse Mode: initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, number of pulses P-N:1-99999999, resolution: 0.001S- Signal source mode: voltage source 2-10V adjustable, current source 4-20mA adjustable- Sine wave mode: 1-999999HZ adjustable (Triangle wave adjustable range is the same)- Signal load capacity: the maximum output current is 20mA (Note: this product is a signal source, which cannot directly drive high-power loads)- Environment temperature: -10 to 70℃- Dimensions: 92 x 70 x 28mm- Weight: 105gPackage Included:- 1 x Set of Signal Generator Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
