Busbar Chamfering/ Deburring Processing Machine

Product Description

Video Link
Explore More: https://cncmachinegroup.en.made-in-china.com

Product Parameters

Capacity	Thickness	mm	3-15mm
	Width	mm	30-230
	Min Length	mm	200
Stroke	X Axis	mm	260
	Y Axis	mm	890
	Z Axis	mm	190
Servo Spindle	Tool Holder Model	/	BT40
	Total Power	kw	11
	Servo Motor Power of Spindle	Kw	5.5
	Speed of Spindle	rpm	0-6000
	Tool Changing	/	Pneumatic
Accuracy	Position	mm	±0.05
	Position Repeat	mm	±0.05
Library	Knife	pc	6
	Stroke	mm	250
Machine Weight		Kg	2400

Our Advantages

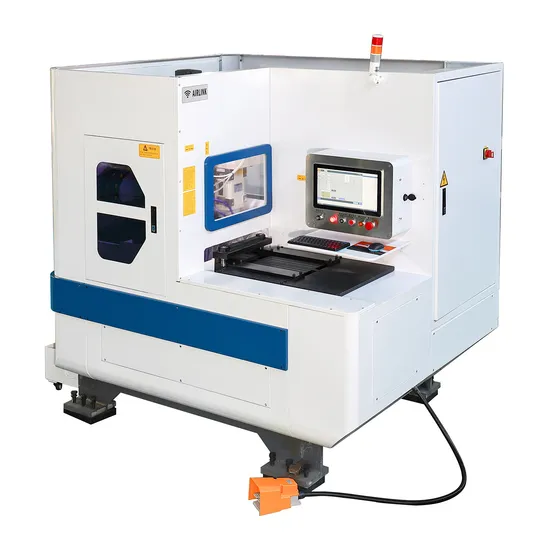

BEIENE is focusing on Intelligent and 3D busbar Processing line with our own 3D busbar program software Smartnest . This is our Intelligent 3D busbar Chamfer machine EMAC-XT with our unique AIRLINK technology ! It has 6 knives tool magazine for automatic tool exchanging . and various chamfering templates ! By our AIRLINK , all the chamfering template can be set up to the 3D or 2D drawings imported by our software Smartnest in office remotely and process them on the machine directly !

Workpiece Samples
