Yk-Hbd600 Horizontal CNC Drilling Machine for Beam & Pipes & Channel & Angles

Product Description

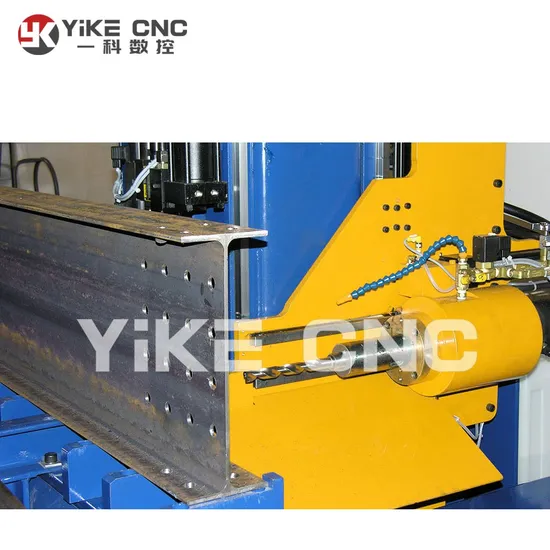

YK-HBD600 Horizontal CNC drilling machine for beam & pipes & channel & angles
Product Description
APPLICATION INDUSTRY:
This machine is mainly used for processing holes on H-beam, channel beam, angles with low/high speed, the spindle feeding position driven by servo motor. It adopts spindle servo motor, controls by CNC system, high efficiency, and high precision. It's wildly used in construction, bridge and other industries.
PRODUCT FEATURES:

CNC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing. Main machine, hydraulic pressure, electric components are famous products domestic and abroad. Equipped with automatic cooling system, lubrication system. Double linear guides' infeeding, precision much higher and more stable. Product Parameters

MODEL	YK-HBD600
Max. workpiece size, mm	600*600
Min. workpiece size, mm	50*50
Max. workpiece length, mm	12000 or 15000
Max. Drilling dia., mm	Φ40
Max. Drilling thickness, mm	100
Spindle Qty.	1 (BT40)
Spindle taper	30 - 3000
Motor power of spindle, kW	15
Option ATC - Automatic tool changer	4 Position
Cooling type	Internal + External Cooling
Fixing type	Hydraulic press + Tooling
Control system	SIEMENS CNC

Detailed Photos

Certifications
Packaging & Shipping
Company Profile
Shandong YIKE CNC Machine Co.,Ltd is one worldwide metal processing manufacturer & service supplier. YIKE CNC is committed to providing the best quality metal processing equipment to the world with 20 -years industry experience. The main products are concentrated in CNC drilling & milling machine for steel plates, CNC punching machine for angles, CNC drilling machine for beams, CNC punching machine for steel plates, CNC drilling machine for pipes, CNC lathe machine, CNC machining center, CNC plasma cutting machine, CNC turning and milling machine, sawing machine, bending machine and e.c.
The factory has more than 260 sets advanced machining equipment such as GRU28 x 60 gantry machining center, TH65100 x 100B doublework bench horizontal machining center and MM52160 x 8000 guide way grinding machine, and applies advanced testing equipment including Renishawlaser interferometer etc.
We have overseas after-sales service in many countries, such as Russia, Uzbekistan, India, Vietnam, Indonesia, South Africa. After years of struggle, YIKE CNC metal processing machines are exported to more than 60 countries and regions, covering steel structure, angle tower transmission, bridges, heat exchangers, mechanical parking garage, petroleum equipment, automobile manufacturing, automobile automation, metal processing, infrastructure construction, many industries and categories.

After Sales Service
INSTALLATION, COMMISSIONING AND TRAINING:
After machine arrive customer's plant, and once the foundation is good prepared, the seller will send the engineer to customer for installation, commissioning and training.
TECHNICAL SUPPORT:
YIKE CNC always take prompt response for all customers' feedback. If problems cannot be solved by calling and mail, we send engineers to customers' factory for site service without fail.
Our Technical Support, Parts Supply and After Sales Service, are unparalleled in the industry.
SPARE PARTS:
YIKE keep all main spare parts readily available in storage for immediate delivery. If any parts model upgraded, we will try to help customers change new model.
Also we supply some critical and wearing parts drawings to our customers, who can outsource it in your local area.
We will supply free service for customers who buy spare parts from our side directly. All urgently required spare parts will be delivered by air to our customers.
FAQ:

1. HOW LONG DOES IT TAKE TO INSTALL ONE MACHINE?The machine can be installed and operational in your facility about 5 days after receiving the machine. The machine is simple to install and most of the work is done by the customer prior to the service technician arriving at the customer's facility.
The machine arrives by standard container. You, the client, are responsible for offloading the YIKE machine from the transport truck and setting up the machine in his facility.
2. WHAT TRAINING IS PROVIDED FOR YIKE MACHINE?
Once you have notified YIKE that the foundation work has been completed, and you have faxed or mailed the Installation Readiness to YIKE, then the YIKE service technician will travel to your facility and do the final setup and calibration of your machine, and then spend time with your operators taking them through our simple yet thorough training program.
Your operators will receive training in: Machine setup and adjustment Machine maintenance and lubrication Fault finding and troubleshooting Programming of parts Importing of parts How to change the spare parts, like the punches and dies, the drill bits.
3. WHAT SOFTWARE TRAINING DO I RECEIVE?
The YIKE CNC MACHINES uses the industry standard PLC modules, so it is very easy to input some values into the machine software and send all parameters to PLC. If you are using some lofting software such as TEKLA, X-STEEL, or your AUTOCAD drawings, so long as it can be opened in txt format, our machine can convert the data into suitable machine data automatically. Our CNC Plate Drilling Machine, CNC H beam Drilling Machine can read AUTOCAD files automatically.
Our installation technician will show you how easy it is to program parts into the YIKE machines, both at the machine and offline in your office.
4. Can your machine or other products be customized?
Yes, we are a professional manufacturer who specializes in CNC Punching, Drilling, Cutting, and Sawing machine for Angles, Plates, Beams, Flats, Tube sheets, Flange for many years. We have a strong design team,so any conventional products can be customized
5. What about the transportation?
Usually we take seaway, because it's more convenient and cheaper for big machine. Sometimes we deliver machines by railway. But for urgent required spare parts we deliver it by air express.
6. What is your machine quality and inspection?
YIKE Corp. is passed ISO9001:2008 quality management system certificate for many years. And YIKE accepts SGS inspection on behalf of our customers before shipping as well.
7. What is your payment term?
Generally, 30% advance payment, 70% against copy of B/L (after shipping). YIKE also accept 100% L/C at sight.

---
