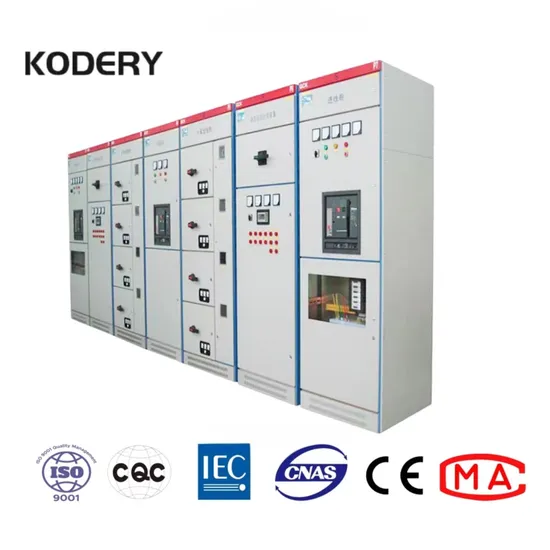

Gck Low Voltage AC LV Fixed Type Distribution Switchgear for Power Distribution System

Product Description

Product Description GCK low-voltage withdrawable switchgear consists of two parts: power distribution center( PC) switchgear and motor control center( MCC) . It is suitable for power users applicable to such as power plants, substations, industrial and mining enterprises for AC 50Hz, maximum working voltage up to 660V maximum working current up to 3150A in the power distribution system, it is used for power distribution, motor control, lighting and other power distribution equipment for their power conversion and distribution control.
The altitude does not exceed 2000m
The ambient air temperature is not higher than + 40C, and the average temperature within 24h is not higher than+ 35C, and the ambient temperature Is not lower than-50C
Atmospheric conditions: the is clean, the relative humidity does not exceed 50% + 40C, and higher relative humidity is allow- ed at lower temperatures, e.g.: 90% at +
There place should be without , explosion hazard, serious pollution, chemical corrosion and severe vibration Inclination should not be more than 5to the vertical
This product Is suitable for transportation and storage at the following temperatures: -25C-+ 55C, and within a short period of time( not more than 24h) not exceeding + 70C
If the above service conditions cannot be met, the user should consult our company when ordering. Product Parameters

High generality.

Separate compartments:Functional compartment, busbar compartment, cable compartment

Compacted designing, space saving

Modular design, easily assembly

Anti-flaming material, high safety and reliability

Protection degree of enclosure:Max.IP40 Rated insulate voltage 660V Rated operation voltage 380V Rated current of main busbars Up to 5000A Rated current of distribution busbars Up to 2000A Rated short time withstand current (1s) Up to 100kA Rated peak withstand current Up to 220kA

Detailed Photos
