GF1100 Industrial RFID PDA Reader

Product Description

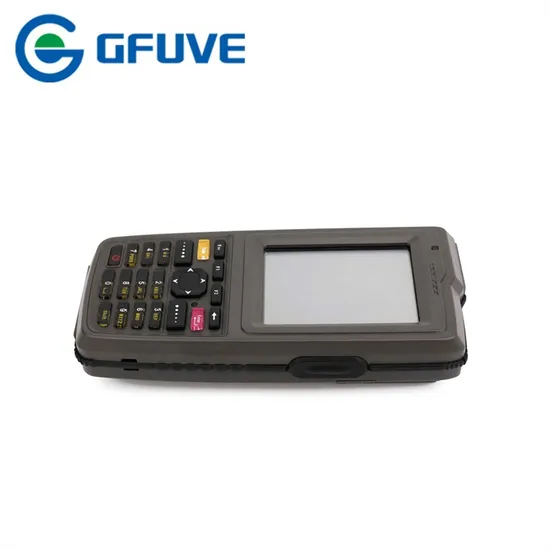

GF1200 Handheld Unit
Overview
Operation system: WINCE 6.0 or WINDOW MOBILE 6.5
Scan module: 1D barcode/IrDA
Wireless communication: WiFi/Bluetooth/GPRS/GSM
Features
Support USB2.0, RS232, IrDA;
Support WiFi, Bluetooth, GPRS, and so many communications;
Support 13.56M RFID module;
Support GPS application;
Support Micro SD card, you can expand storage.
Logistics; Parking management; Field service; Mobile data collection; Cargo & workforce Monitoring; Spot Ordering; Post/parcel delivery; Warehouse management etc.

Handheld Terminal	Detailed Specification
OS	Windows CE or Windows Mobile 6.5 (English language)
CPU	Hisilicon K3, ARM 926E, 533MHz
Memory	128MB RAM + 256MB Flash ROM Expansion (MicroSD): 32G (Maximum)
Display	3.2'' TFT QVGA color touch screen; resolution 240*320 dpi
Input Method entry options	12 alpha/numeric keys, 12 function keys, 5 navigation keys, 2 scan keys, 1 reset key; Attached stylus
Communication WLAN USB/ Serial port Audio GSM/GPRS Bluetooth	IEEE 802.11b/g Micro USB 2.0 Speaker/microphone GSM/GPRS: 850/900/1800/1900MHz (voice communication) (optional) Ver. 2.1 + EDR class 2.0
Power Battery Charging method charging time	Rechargeable 3.7V, 2400mAh battery Enclosed power supply, separate seat charger 6-7 hours
Support Functions RFID Barcode Scanner(ID) Camera GPS(SKG13)	LF:125k (ID)/134.2kHz HF:13.56M (IC) ( optional ) CCD/ Symbol Laser Barcode reader( optional ) 1.3 mega pixel, Auto-focus, with flashlight Integrated SIRF
Dimensions (w x d x h)	152mm x 68mm x 27mm ,black
Wight	260g(include battery)
Durability Temperature in operation Temperature in storage Humidity in operation Humidity in Storage Drop test Protection Rate	-10ºC~+ 50 ºC -40ºC~+60ºC 5~95% (non-condensing) 0~95% (non-condensing) 1.5 m drop onto concrete IP54
Packing list
Handheld Unit		1 PCS	Battery	1PCS(2400MAH)
Charger		1PCS	USB Cable	1PCS
CD		1PCS	Total Weight	450g

---
