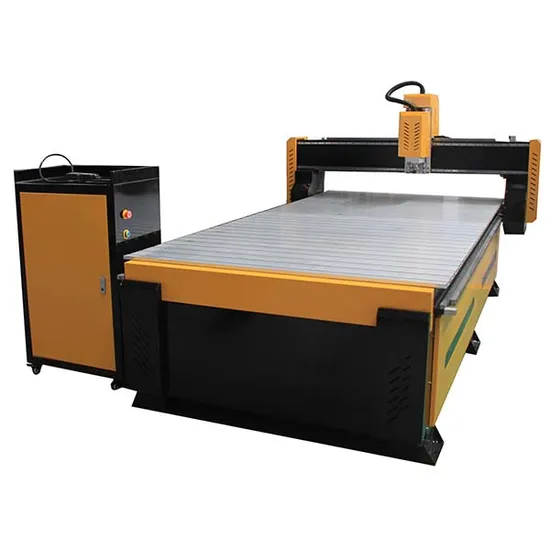

Economic 1325 Advertising Field CNC Router Engraving Router Machine

Product Description

Industry:
This machine is suitable for the processing of diversified and complex
products or the processing of multiple, widely used, can engrave drilling, etc., mainly used for carving and milling.
Woodworking industry: this machine is suitable for coffin, shoucai, wooden door, embossment carving, also can do three-dimensional wave board processing, screen art window processing, computer table and board home products auxiliary processing.
Specification

system	Ncstudio or DSP
Maximum speed	20M--min
The machining accuracy	±0.01mm/1000mm
Job dimensions	1300mm*2500mm*200mm
verall dimensions	3000mm*2500mm*1600mm
Spindle power :(optional)	2.2KW 3.2KW 5.5KW
The power supply mode	Alternating current (ac)
Operation instruction	G code F/S command compatibility
The power to	Three compartments 380v/50Hz or 220v/50Hz
Run the motor(optional)	Stepper hybrid servo ac pure servo
Z-axis drive system	High precision ball screw
)Cylinder carving (optional)	0-1000mm 10mm-50mm

Sample photos
Applicable of our wood cnc router
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors
and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car,
bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon
mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft
metals such as copper, aluminum plate engraving and milling process.

---
