Drag Hose for Agriculture Irrigation Sludge Discharge and Liquid Fertilizers

Product Description

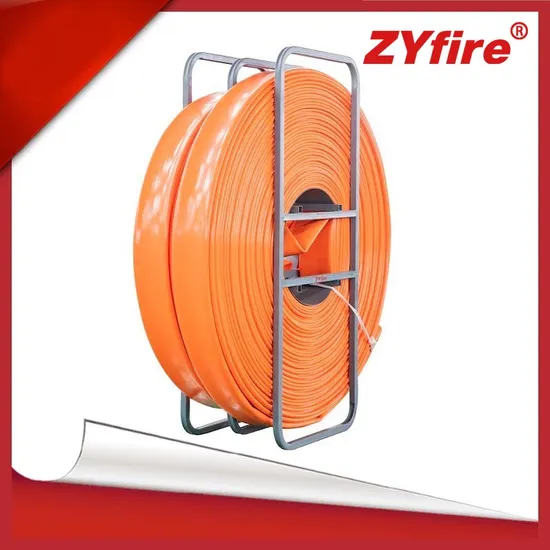

Drag Hose
Product Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Drag Hose
Through-the-weave TPU Hose
Cover and Lining: TPU, Ribbed cover or smooth cover
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).
* High Tensile Polyester Contnuous Weave Jacket
* Through-the-Weave Extruded Construction Encapsulating the Woven Jacket
* TPU Thermoplastic Resin for Highest Abrasion Resistance in a Wide Range of Field Conditions
* Optimized Design for Low/No Kink in Tight Turn Situations
* Tem Range: -40° F to 160° F
* 5 1/2", 6" and 7" Diameters are Available in 660' and 1320' Lengths

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight		Tensile Strength
inch	mm	mm	inch	mm	bar/psi	bar/psi	kg/m	lbs/ft	kgs	lbs
4"	102	+2.50	0.16	4.00	12/180	36/480	1.50	1.01	15500	34200
4"	102	+2.50	0.16	4.20	13/200	39/600	1.60	1.07	16500	36500
5"	127	+3.00	0.17	4.30	12/160	36/480	2.00	1.34	19500	43000
5-1/2"	140	+3.00	0.17	4.30	10/150	30/450	2.40	1.61	21000	47500
6"	154	+3.00	0.18	4.50	10/150	30/450	2.80	1.88	25000	55500
7"	178	+3.00	0.18	4.50	10/150	30/450	3.20	2.14	31000	68000
*All above technical parameters are for reference, details please confirm with Yfire.
