Factory Two-Head Calibration Machine Segmented Marble Polishing Stone Calibrating Machine

Product Description

Product Description

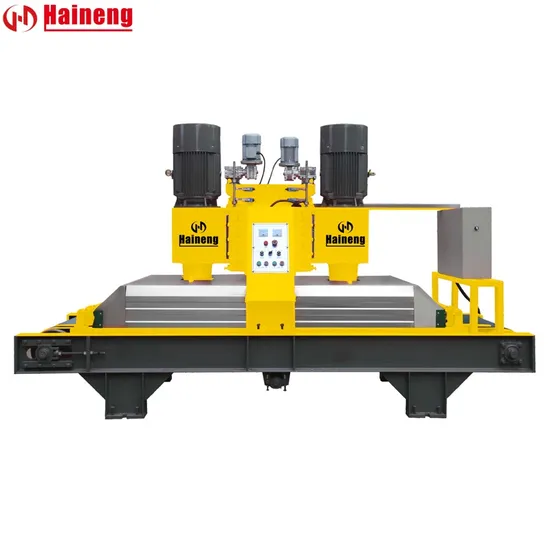

Two Heads Calibrating Machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.



Product Parameters

Two Heads Calibrating Machine
Type	unit	DHJ800-2(marble)	DHJ800-2(granite)	DHJ1200-2
Max. cutting width	mm	850	850	1230
Max. cutting thickness	mm	80	80	80
Speed of conveyor belt	mm/min	0~1600	0~1600	0~1800
Power of main motor	kw	11~8	22~6/18.5~6	22~8
Total power	kw	24.24	42.74	46.24
Water consumption	m³/h	3	3	3
Dimension (L×W×H)	mm	4100×1600×2200	4100×1600×2200	5600×2100×2200
Total weight	T	3.8	4.3	6.3

Processing

Packaging & Shipping


Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries

---
