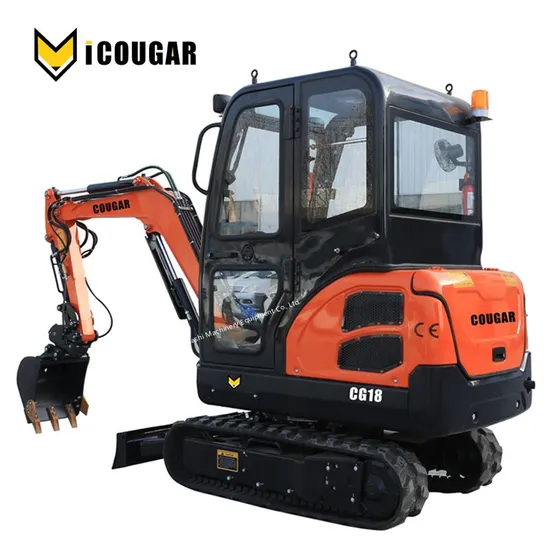

Compact 1.8t Mini Excavator with Telescopic Undercarriage and Engine

Product Description

Our company offers a variety of products which can meet your multifarious demands. We adhere to the management principles of
"quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy the
potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order
to realize a win-win situation since the trend of economic globalization has developed with irresistible force.
The COUGAR Equipment is an innovative machine that reduces the costs of performing key tasks and the process of improving the
environments in which people live and work. Developed to replace hand labor, the COUGAR provides a cost-effective,
terrain-friendly solution for landscapers, irrigation contractors, plumbers, electricians, and property owners as they dig,
trench, till, auger, demo, place materials, and perform a multitude of other tasks.
All steel parts are built in-house. This means that we have total oversight and control over our types of equipment production and
quality. By manufacturing the entire machines at one location we have been able to make huge savings, allowing us to manufacture
high-quality wheel loaders and construction machinery at the lowest rates for our customers. Having total control over our
production has also meant that we can make modifications to our equipment as requested by our customers. Recommend model :CG827 ,CG823,CG8810,CG8818,CG829,CG830,CG858,CCG18,CG10,CCG150,CG9075,CG130
SPECIFICATIONS:

ENGINE
Emission Standard	EPA/EURO V
Make	KUBOTA
Model	D1105
Power /Rotation speed	14kw(19HP)@2000rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller/ bottom roller(per side)	0/4
PERFORMANCE PARAMETER
Standard bucket capacity	0.06m³
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	16Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (L*W*H)	3865mm*1050mm*2215mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

FAQ
Q1:Are you the manufacturer or the trading company? We are the manufacturer of the COUGAR skid steer loader, mini loader,excavators,and various attachments. And we have our own trading company. 1)We can supply good service with professional international trade 2)Our price is much more competitive with good quality

Q2:Do you offer the OEM or ODM service?what's the MOQ?
Yes, we can make it , the MOQ is 1 unit!

Q3:What's the lead time? How long can i get the equipment after payment?
1)The lead time around 14 days if you wanna customized the machine.
2)The standard machine in stock ,could delivery ASAP after get your payment.


Q4:What's the warranty?
1)Cause the COUGAR equipment's engine, hydraulic pump,valve, motor... etc offer 1 year global warranty, so you can get the warranty from the local market.
2)We offer online video support, free spare parts, video technical support,field maintenance and repair service,service for a whole life of cougar machine.

Q5: How to pay for you?
30%T/T in advance as deposit,70% T/T before shipping.

- Please check that all Beneficiary and Bank details are correct when sending us a Bank Transfer. - Under no circumstances should you send us a bank transfer to an account other than the one shown above. - Our billing details will never be modified or changed.

---
