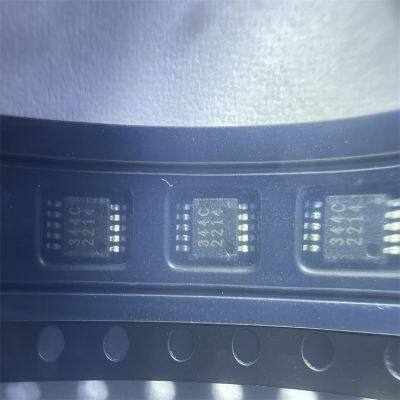

CS4344-CZZR Cirrus Logic Audio D/A Converter ICs IC 10-pin 24Bit 192kHz Stereo DAC

Product Details

Product Description

Product Description
Factory
CS4344-CZZR
Manufacturer: Cirrus Logic
Product Category: Audio D/A Converter ICs
RoHS: Details
Series: CS4344
Number of Converters: 2 Converter
Resolution: 24 bit
Interface Type: Serial
Number of DAC Outputs: 2 Output
Operating Supply Voltage: 3.3 V, 5 V
Minimum Operating Temperature: - 10 C
Maximum Operating Temperature: + 70 C
Mounting Style: SMD/SMT
Package / Case: TSSOP-10
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Architecture: Delta-Sigma
Brand: Cirrus Logic
Dynamic Range dB: 102 dB
Height: 0.95 mm
Moisture Sensitive: Yes
Number of Channels: 2 Channel
Number of DACs: 2 DAC
Operating Supply Current: 22 mA
Pd - Power Dissipation: 150 mW
Product: Audio DACs
Product Type: Audio D/A Converter ICs
factory pack quantiy: 4000
Subcategory: Audio ICs
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 3 V
THD plus Noise: - 90 dB
Unit Weight: 0.011727 oz

---
