Gp01-H15jm4 Horizontal Optic Splice Closure

Product Description

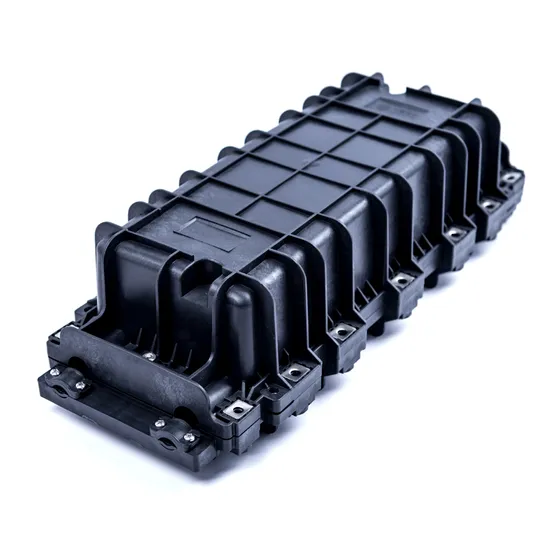

GP01-H15JM4 in-line / Horizontal Fiber Optic Splice Closure
It can be used to connect and branch fibers in aerial, direct buried, and pipeline locations. The case body is made from high-intensity engineering plastics and formed the shape with mold plastics under high pressures. High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service. With reinforced structure on the main body of the closure. IP: 68.

Model	GP 01-H15JM4
Material	PP alloy	Max. Capacity of splice tray	24 /72core (single fiber), 72core ( Ribbon fiber 12c)
Applicable Cable Dia	Φ12.5~22 mm	Max. Splice Capacity	432core (single fiber, 72F/Tray), 144core (single fiber, 24F/tray) 288 core ( ribbon fiber: 12c )
Product Dimension	575*229*151 mm	Duration	25 years
Inlet and outlet	2 inlet and 2 outlet	Application	Aerial, Direct buried, Manhole, Pipeline
Sealing Method	Unvulcanized Butyl Rubber Strip

Features:
1. Adopt silicon gel strip and screw for sealing, easy installation without using special tools.
2. A good mechanical property and resistance to weathering, firm and wearable, reusable.
3. Splice tray with optical fiber radius of curvature >= 40 mm. Low optical loss.
4. Metal component and fixing unit are made of stainless steel.
Technical Datas:
Atmospheric Pressure: 70~106Kpa
Axial Tension : > 100N/1min
Flattening Force: > 2000N/10cm2 , 1min.
Insulation Resistance: > 2 × 104MΩ
Endurance Voltage strength: 15KV(DC) per 1min, without breakdown and arc.
Recycling Temperature: -40ºC~+65ºC, 60(+5)Kpa inside, 10times. Back to normal temperature, the air pressure decrease less than 5kpa.
