800~2500MHz LTE Outdoor Directional LPDA SMA Antenna for Signal Booster Repeater

Product Details

Product Description

Product Description

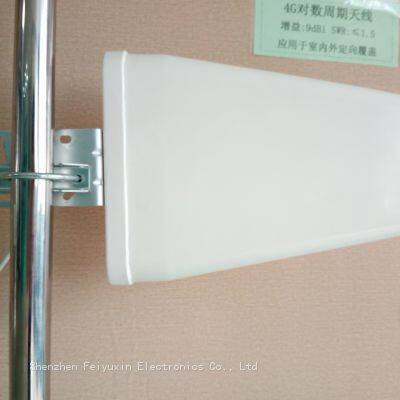

800~2500MHz LTE Outdoor Directional LPDA SMA Antenna for Signal Booster Repeater
Product Features:
1. The antenna comes with an N Female pigtail cable as standard.
2. Designed for stationary, roof-top home or building. For example, commercial buildings, offices, house roof, etc.
3. The lpda yagi antenna to be mounted on up to 2” diameter pole (mounting hardware/accessories/bracket included).
4. Supports all carriers using 700-2690 MHz for transmitting.
5. Working with 50 ohm cell signal booster systems.
Please Note:
1. Pole is not included.
2. This antenna will not operate by itself. It is one component of a cell signal booster system.
3. This lpda directional antenna is required to be connected with N/SMA type coaxial cable to a cellular amplifier system.
Product Specifications - Directional LPDA Yagi Antenna
Electrical Specifications
Frequency Range (MHz): 806-960/1710-2690
The half power beam width: H:65±5° V:50±5°
Gain (dBi): 7/9
VSWR: ≤1.8
Input Impedance (Ω): 50
Polarization: Vertical
Max. Input Power: 100W
Lightning Protection: DC Ground
Mechanical Specifications
Input Connector: N Female or customized
Antenna Dimension(mm): 295x210x65
Radome Material: ABS
Radome Color: White
Mounting way: Pole Mount
Mounting hardware: Ф35-Ф50
