High Performance Th550 Plastic Injection Making Molding Machine for Phone Case

Product Description

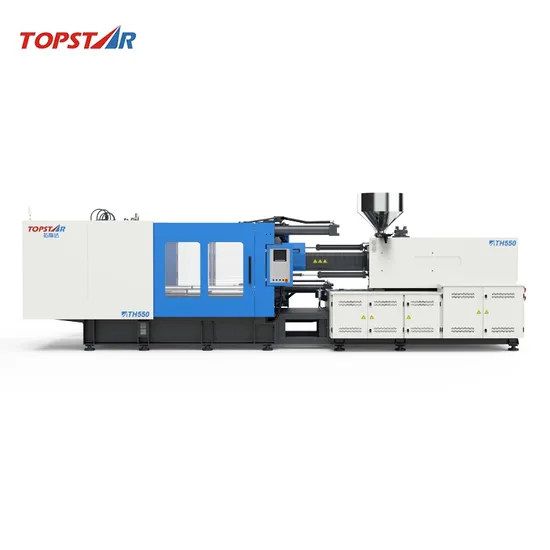

Topstar 130-1400Ton Direct Clamp Injection Molding Machine

Product Description:
The TH series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes themachine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small mdeformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. High performance chrome plated screw, durable and efficient, wide range of application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TH550
Screw Diamete	mm	80	85	90
Screw L/D Ratio	L/D	23.4	22.0	20.8
Screw Stroke	mm	425	425	425
Shot Volume	cm3	2136	2412	2704
Shot Weight(ps)	g	1944	2195	2460
	oz	68.4	77.3	86.6
Injection Pressure	kgf/cm3	1985	1758	1569
Injection Rate	cm3/s	482	544	610
Injection Rate	mm/s	96	96	96
Screw Speed	rpm	161
Nozzle Contact Force	t	9.1
Nozzle Stroke	mm	575
CLAMPING UNIT	UNITS	TH550
Clamping Force	t	550
Opening Stroke(Min)	mm	800
Opening Stroke(Max)	mm	1300
Platen size(H×V)	mm	1270*1270
Space Between Tie Bars(H×V)	mm	860*860
Mlould Thickness (Min)	mm	400
Mlould Thickness (Max)	mm	900
Max. Daylight	mm	1700
Ejector Force	t	16.0
Ejector Stroke	mm	250
Locating Ring	mm	160
Number of Temp Control Zones	-	17
POWER/HEATING UNIT	UNITS	TH550
System Pressure	kgf/cm3	175
Pump Power	kw	57
Heating Power	kw	43.4
Number of Temp Control Zones	-	5+1
OTHERS	UNITS	TH550
Machine Dimensions(LxWxH)	m	7.2*2.2*2.34
Oil Tank Capacity	L	700
Machine Weight	t	18.5
Platen Specification

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
