Description

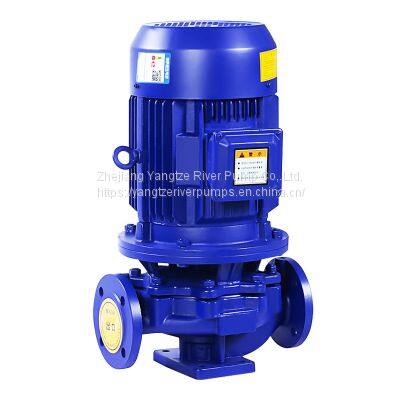

ISG vertical inline centrifugal pump, for transporting water and physical and chemical properties similar to water and other liquids.ISG vertical inline centrifugal pump, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire pressurization, long-distance transport, HVAC refrigeration cycle and other hot and cold water cycle pressurization.
Attention:We also supply hot water pump, high temperature pump, chemical pump, oil pump with special design.
ISG vertical centrifugal pump has advantages as following :
1) Low noise: With two low-noise bearings which runs smoothly, except for the low noise of the motor.
2) Low failure rate: The structure is simple and reasonable, and the key parts are designed and manufactured with excellent water conservancy models, with low energy consumption, high efficiency, and greatly improved trouble-free working time of the whole machine.
3) Easy maintenance: It is easy and convenient to replace the seals and bearings, especially the horizontal pump has a rear-opening structure, which can be repaired without dismantling the pipeline.
4) Compact structure: The outlet of the horizontal pump can be left, right and upward, which is convenient for pipeline arrangement and installation, and the floor area is reduced by 30%. The vertical arrangement saves space due to its smaller footprint.
Pump details
Main applications:Water, hot water,oil, chemical
Driver:Electric motor
Power Specs:220V/240V380/415V, 1/ 3phase; 50hz/60hz
Max.permissible fluid temperature:80~240°C (464°F)
Type of connection:Flange
Casing material:Cast iron, Stainless steel, Duplex SS, Bronze
Impeller material:Cast iron, Stainless steel, Duplex SS, Bronze
Shaft seal type:Mechanical seal
Maximum discharge-side pressure:<1.6MPa
Maximum head:150m
Flow rate range:2.5-1500m3/h
Pump type:Water, Hot water type, oil type, chemical type
Enviroment Temperature:<40°C
Scope of application
(1) IRG hot water circulation pipeline pump, suitable for metallurgy, chemical industry, textile, wood processing, papermaking, high temperature hot water pressurized circulation transportation of boilers in restaurants, bathrooms, hotels, etc., as well as urban housing heating circulation pumps, the operating temperature is 120 °C the following. If higher temperature liquid, contact and we will design and customzie for you.
(2)IHG type chemical stainless steel centrifugal pump, suitable for conveying corrosive liquid medium without solid particles, widely used in petroleum, chemical industry, metallurgy, papermaking, food, pharmaceutical and synthetic fiber and other departments, its use conditions: -20 °C ≤ temperature ≤ 120°C.
(3) YG type explosion-proof oil pipeline pump, which is specially designed to transport petroleum products, such as gasoline, kerosene, diesel and other petroleum products, and the temperature of the medium being transported is -20°C ~ +120°C.
>>
