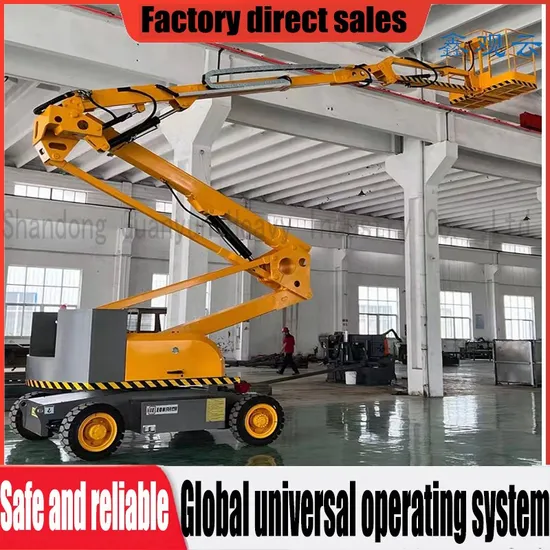

360 Degree Rotating Boom Lift Articulated Aerial Work Platform

US$20,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Certification
CE, ISO 9001
Rotation Angle
360
Drive Type
4X2X2
Max Climbing Grade
25%
Battery Capacity
2X24V/400ah
Fuel Tank Capacity
80L
Tire Specifications
28X9-15 Solid Tire
Max Allowable Angle of Chassis
1.5/3;
Transport Package
Container
Specification
8m/10m/12m/14m/16m/18m/20m/22m/24m/26m/28m/30m
Trademark
Xinguanyun
Origin
Jinan City, Shandong Province
HS Code
8428109000
Production Capacity
1000

Product Description

Model Maximum height
(m)		 load
(kg)		 Table size
(mm)		 External dimensions
(m)		 Maximum external dimensions
(m)		 Weight
(kg)
SJYZQ0.23-8 8 230 1600*800 5.2*1.65*2.35 5.3 4900
SJYZQ0.23-10 10 230 1600*800 5.5*1.65*2.35 5.8 5800
SJYZQ0.23-12 12 230 1600*800 6.3*1.78*2.35 6.9 6596
SJYZQ0.23-14 14 230 1600*800 7.0*1.93*2.35 8 6900
SJYZQ0.23-16 16 230 1800*800 7.18*2.18*2.2 8.9 8550
SJYZQ0.23-18 18 230 1800*800 8.35*2.2*2.63 10.6 9200
SJYZQ0.23-20 20 230 1800*800 8.86*2.25*2.53 11.7 11000
SJYZQ0.23-22 22 230 1800*800 11.2*2.4*3.2 12.2 13200
SJYZQ0.23-24 24 230 1800*800 11.2*2.6*3.2m 12.5 14200
SJYZQ0.23-26 26 230 1800*800 11.5*2.8*3.1m 12.8 16200
SJYZQ0.23-28 28 230 1800*800 12.3*2.8*3.2 13.2 18200
SJYZQ0.23-30 30 230 1800*800 12.8*2.8*3.3 13.6 21000
Optional work platform rotation (± 80 °) + $2000 USD Optional wireless remote control + $3000 USD
You can choose between diesel or battery power at the same price

8m-30m Electric/Diesel Lift Boom Articulated Aerial Work Platform
8m-30m Electric/Diesel Lift Boom Articulated Aerial Work Platform
8m-30m Electric/Diesel Lift Boom Articulated Aerial Work Platform
8m-30m Electric/Diesel Lift Boom Articulated Aerial Work Platform
8m-30m Electric/Diesel Lift Boom Articulated Aerial Work Platform
