Telescopic Paint Spray Booth for Large Heavy Duty Workpieces Industry Paint Room

Product Description

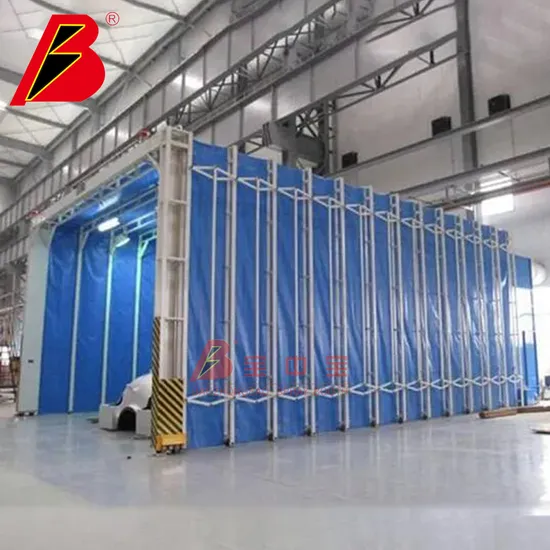

Telescopic paint spray booth for large heavy duty workpieces Industry Paint Room

Quick Detail:

Telescopic paint spray booth is an environmentally-friendly painting equipment that can be automatically
unfolded to form a closed or semi-colsed painting space when it is used, and can shrink and fold to one
place when not in use, it is used in a wide range of applications and is particularly suitable for the painting of larger workpieces.

Product Application

Telescopic paint spray booth is used for the painting work of large-volume, heavy-weight products that are not convenient for
manual handling.

Technical Parameters :

NO.	Content	Specifications and requirements	Remark
1	Inner size(mm)	20000×8000×7200	L×W×H
2	Door size(mm)	8000×7000	W×H
3	Illuminance Lux	≥400
4	Intake Fan	18000m³/h/set	3 set
5	Lighting power kw	0.544	8×0.018kw
6	Driving power kw	4.4	2×2.2kw
7	Telescopic speed m/min	8-12m/min

---
