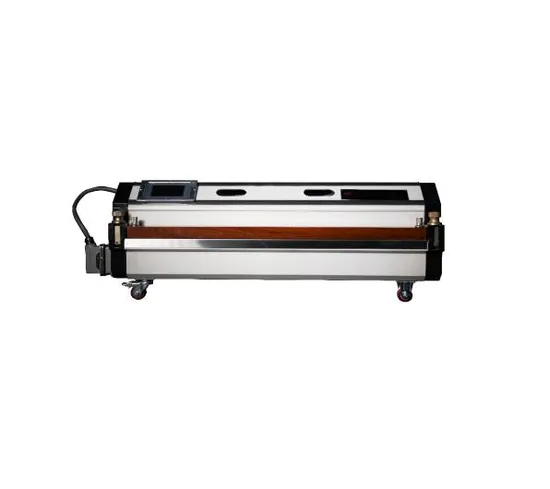

PVC Conveyor Belt Jointing Machine

Product Description

Product Description PVC PU conveyer belt plate vulcanizing press is used to connect PVC or PU conveyor belts.
The PVC PU belts are widely used in all kinds of industrial. In food industry, in airport etc.
Our machine feature is strong while light in weight, easy operation and maintenance.
Size Information

Tool Specifications	PA300	PA600	PA900	PA1200	PA1500
Effective length	305 mm / 12 "	610 mm / 24 "	914 mm / 36 "	1219mm/ 48"	1524mm/ 60"
Effective width	130 mm / 5.1 "	130 mm / 5.1 "	130 mm / 5.1 "	130mm/ 5.1"	130mm/ 5.1"
Weight lower part	10 kg / 22 lbs	15 kg / 33 lbs	20 kg / 44 lbs	28.5KG/56lbs	32KG/68lbs
Weight upper part	11 kg / 24 lbs	15 kg / 33 lbs	18 kg / 40 lbs	25.5KG/50lbs	30KG/65lbs
Total weight	21 kg / 46 lbs	30 kg / 66 lbs	38 kg / 84 lbs	54KG/106lbs	62KG/133lbs
Length	505 mm / 19.9 "	805 mm / 31.7 "	1105 mm / 43.5 "	1405mm/ 55.3"	1705mm/ 67.1"
Overall Height	220 mm / 8.5 "	220 mm / 8.5 "	220 mm / 8.5 "	225mm/ 9"	225mm/ 9"
Max. pressure	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2bar/28 PSI	2bar/28 PSI
Max. temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Dimensions for transport (L x W x H)	770 x 370 x 310 mm (30 x 15 x 12 ")	1070 x 370 x 310 mm (42 x 15 x 12 ")	1370 x 370 x 310 mm (54 x 15 x 12 ")	1926 x 370 x 400 mm (68 x 15 x 12")	1926 x 370 x 400 mm (76 x 146 x 122")
Weight for transport	26 kg / 57 lbs	35 kg / 77 lbs	43 kg / 95 lbs	84KG/180lbs	96KG/210lbs

Packing&Shipping We adopts exported purpose fumigation free wood box with pallet base to load the machine.
After Sales Service Pre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory. After-Sales Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products
FAQ
01) Q: Normal delivery time?
A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 30 working days
02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.
03) Q: Can you print our logo or without any logo?
A: It's no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.
04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines, please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.
05)Q: Is it possible to get the best price from your company?
Our price is always competitive in the market, and we promise to offer the best price based on the same quality.
06) Q: What's the payment term?
A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.
Credict Assurance is the best choice. And other methods of payment need negotiation.

---
