ISO Qaulity Hammer Crusher Granite Limestone Coal Hammer Crusher

Product Description

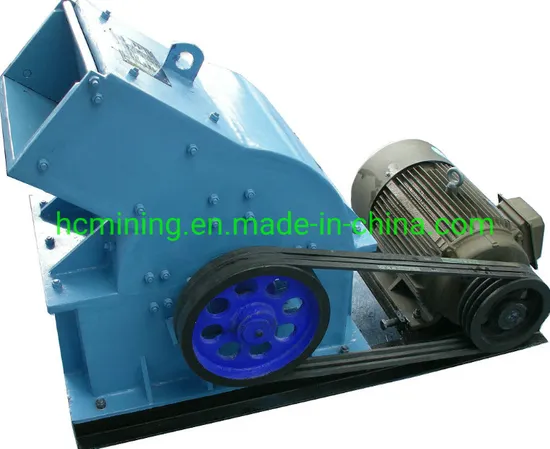

Hammer Crusher introduction
Hammer crusher use the impact force between high-speed rotating hammers and materials to do the break work.
Hammer crusher has the advantages of simple structure, large crushing ratio and high production efficiency etc.
And can crush in dry & wet way. It is widely used in to crush the medium hardness and brittleness materials in mining, cement, coal, metallurgy, building materials, roads, fuel and other departments. The grate gap of hammer crusher can be adjusted to meet different particle size as requirements.
Features of hammer crusher
1. High quality chrome hammer, abrasion resistance achieving the advanced level in country;
2. Specially designing tooth impact plate;
3. Adjustable discharge open;
4. Low power consumption unit;
5. Big crushing ratio
6. Very long operation life
7 Simple structure, reliable operation
8. Easy maintenance, low operation cost
9. Good operating safety, lower energy cost
10. High economic efficiency, low cost, fast recovery
Working principle of hammer crusher
When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size. When the bulk material into the machine, hit by the hammerhead and stopped by material bracket. That's not only increase the contact area between material and hammerhead but also avoid sudden infarction of the rotor. After the impact, bulk materials hit themselves on the crushing cavity. Then the stones overflow from the straight screen or falling and been hammered again forming the stones. At last discharged from outlet of the hammer crusher
Technical data

Model	Rotor Size (Diameter×length ) (mm)	Rotor Speed (r/min)	Feeding Size (mm)	Output Size(mm)	Motor power (KW)	Capacity(t/h)	Weight (kg)
PC400×300	Φ400×300	1440	≤100	≤10	7.5	5-10	900
PC600×400	Φ600×400	960	≤100	≤15	18.5	10-20	1500
PC800×600	Φ800×600	970	≤120	≤15	45	18-24	2680
PC1000×800	Φ1000×800	990	≤200	≤15	110	30-50	5600
PC1000×1000	Φ1000×1000	990	≤200	≤15	132	30-60	8000
PC1200×1200	Φ1200×1200	750	≤250	≤20	180	90-110	19000

---
