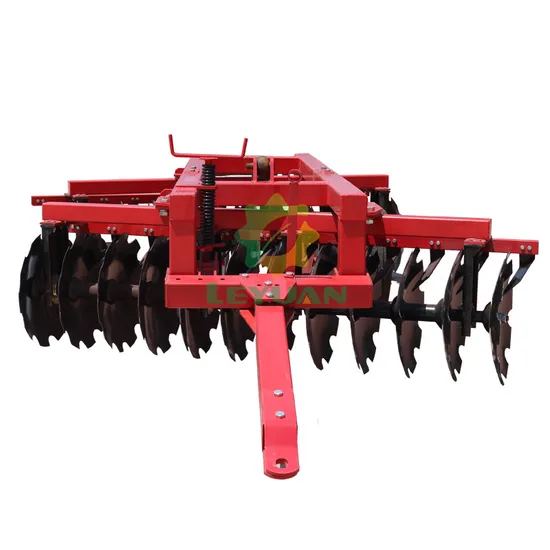

1bz-2.5 Hydraulic Heavy Disc Harrow 24 Discs

US$2,500.00-3,000.00 10 Pieces (MOQ)

Basic Info.

Model NO.
1BZ-2.5
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Blue
Warranty
1 Year
Disc Qty
Cutom Made
Clour
Custom Made
Disc Diameter
Customade
Logo
Custom Made
Disc Material
65mn or Boron
Bearing
Optional Two Choices
Tractor
4 Wheel Tractors
Transport Package
Iron Box
Specification
1BZ-2.5
Trademark
LEYUAN
Origin
Shandong China
HS Code
84322100
Production Capacity
5000set /Year

Product Description

Product Description
1BZ series of Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.

Product Parameters
Model 1BZ-1.8 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 1BZ-4.0 1BZ-5.3
Width of cut (mm) 1800 2200 2500 3000 3400 4000 5300
Depth of cut (mm) 200
Dia of disc (mm) 660
Q'ty of disc 16 20 24 28 32 36 48
Weight (hp) 1160 1250 1350 1430 1550 1900 2500
Tractor power (hp) 70 80 90 100 120 150 180

Detailed Photos
Packaging & Shipping
