GPU Cooler 40X10mm Cooling Fan and Heatsink 12V Hole to Hole Distance

Product Description

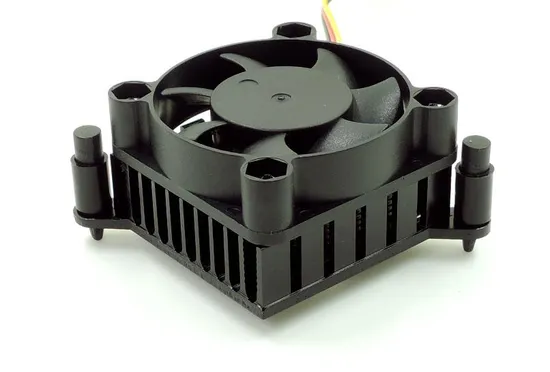

CoolCox GPU cooler built in 40mm cooling fan and black aluminium heatsink,hole to hole distance 59mm
Dimension Drawing:

Parts Specs:
Bearing type:Hydraulic or 2-ball Material: Impeler:PBT Heatsink:Aluminium Lead wire: UL1007 AWG #28 or equivalent Red Wire Positive (+) Black Wire Negative (-) Yellow Wire FG signal (FG) PWM function is optional

Parameters
Remark:Air flow, static pressure, speed and rated voltage can be customized based on requirement.
Electrical Specifications:

Insulation Resistance	10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength	5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating Direction	Anti-Clockwise
Polarity Protect	Circuit is protected when VCC&GND are exchanged
No. of pole	4Poles

Environmental Specifications

Operating Temp Range	Temperature:-10ºC~+70ºC Humidity:35%~85%RH
Store Temperature	Temperature:-40ºC~+70ºC Humidity:35%~85%RH
Thermal Shock	Standard:MIL-STD 202F Method 107D,Condition D
Insulation Shock	UL:Class A

Testing Equipments:
Workshop:
Certificates:
CoolCox implements ISO9001,ISO14001,IATF16949 ,QC080000 management systems; and the products comply with safety regulations
such as UL,TUV,CE.
Packaging & Shipping:

FCL Shipment		LCL Shipment

Air Shipment:
FAQ: 1.What is the lifetime for the different bearings?30,000 hours for sleeve bearing40,000 hours for hydraulic bearing60,000 hours for FDB bearing70,000 hours for 2-Ball bearing

2.What's the MOQ and lead time? MOQ 2000 PCSLead time for samples:about 1 weekLead tiem for mass orders:about 4 weeks

3.What functions are optional for the fans?Auto-restartFG,Tachometer signal outputRD, Alarm signal outputPWM ControlWaterproof

4.Why do choose CoolCox?Professional teamStandard managementHigh level of automationQuality assurance systemHigh customization abilityPrompt delivery ability

---
