Product Description

Machinery Seal Mechanical Seal m377 Garlock Seal Wenzhou API ASME B16.20 Rtj Forged Metal Rx R Bx Ring Joint Gasket
Company Profile Wenzhou Kasin Valve Pipe Fitting Co.Ltd (Wenzhou JELTON Hardware Machinery Co.Ltd) is located in Binhai Zone, Economic&Technical Zone, Wenzhou city, China. Which has been certified by ISO 9001:2008, our company own TS certificate (No.TS271080K-2019), API -6A ( License No.: 6A-2347), and manufacture licence of special equipment.
We have 12 years' experience in Manufacturing and exporting ring joint gasket.
Kasin-Jelton have two workshops. 1st one is Forging workshop to produce forged raw material; 2nd one is Processing workshop, Which is to make the ring joint gasket by CNC machine. So no matter in raw material and finished gasket, the quality and delivery time can be guaranteed.
Our products range are R/RX/BX/IX/SBX Gasket and other kind of special gasket. Material is Soft Iron, Low carbon steel, 316SS, 304SS, 321SS, 347SS, 410SS, Inconel 625, Monel, Inconel 825, 4C6% Chrome 1/2% Mol(F5).
Our market is Amercia, Southeast Asia, Middle East, Europe and etc.
Best quality and best price,welcome to cooperate with us from all over the world!

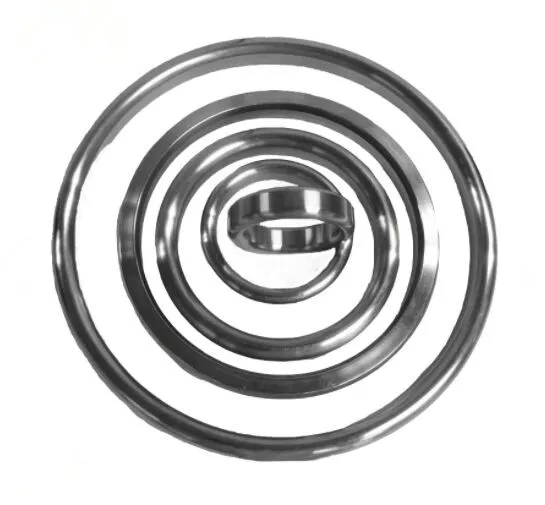

Product Describe Type:
RX R IX BX SBX series ring joint gasket. Size/Pressure Class:
RX:
1 1/2" to 20" : 720 to 5000 API 6A.
R:
1/2" to 24" : 150 to 2500 ASME B16.20.26" to 36" : 300 to 900 ASME B16.47 Series A.1-1/2" to 20" : API 6A.
BX:
1 11/16" to 30" : " 2000 to 20000 API 6A. Material:
Soft Iron, Low Carbon Steel, F5 Alloy Steel, 410 Alloy Steel, SS304, SS304L, SS316, SS316L, SS347, SS321, Nickel Alloy 625 & 825, Duplex, Super Duplex, Monel & other materials available.

Material	Maximum hardness1		Temperature(ºC)		Density(g/cm3)
	HB2	HRB3	Min	Max
Soft iron	90	56	-40	500	7.85
Carbon steel	120	68	-40	500	7.85
F5	130	72	-40	650	7.83
SS304	160	83	-250	550	7.9
SS316L	160	83	-100	550	7.9
Duples31803	230	99	-40	300	7.8
Monel400	150	80	-125	600	8.8
Inconel625	150	80	-50	450	8.44
Inconel825	195	92	-100	450	8.14
Hastelloy C276	210	95	-200	450	8.9
Titanium	215	96	-250	350	4.5

Technology: All ring jonit gaskets are made of solid bar by forging and heat treatment,very high tensile. Applications: Used for high pressure applications. Drawings:
Certification
Production Workshop
Quality Control
Why choose Kasin-Jelton? (1) Quality proceeded As per API-6A standard.(2) All ring joint gasket is made of solid bar by forging and heat treatment, not casting.(3) With perfect tensile, forged gaskets can work well in high pressure and high temperature. Meanwhile, it has long lifetime. (4) Casting's tensile is not well comparing with forged, so it has risk leakage in high pressure and high temperature,and its lifetime is shorter than forged.
(5) Strict Quality Inspection: Chemical composition testing,Hardness testing, dimension testing.(6) Fast Delivery, we own our forged workshop and CNC workshop. So fast delivery can be guaranteed.(7) We are directly exporter and manufacturer. So there are no intermediary cost involved.

---
