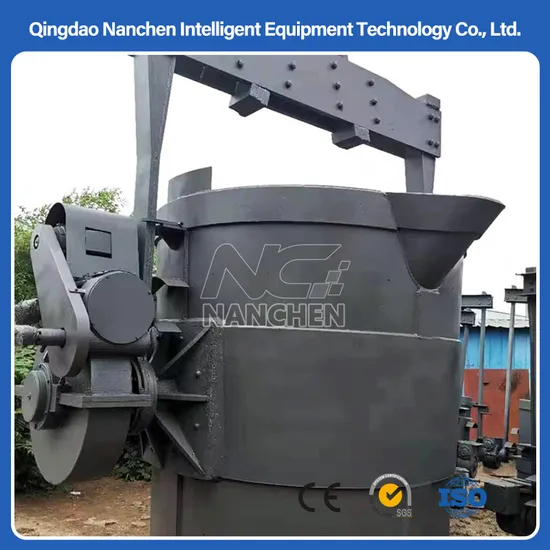

0.3-30 Tons Liquid Steel Pouring Ladle/Cast Iron Ladle/Pouring Ladle for Foundry

Product Description

0.3-30 tons Liquid Steel Pouring Ladle/Cast Iron Ladle/Pouring Ladle for Foundry Company Profile
Product Description
Application of Casting foundry steel ladle Hot metal ladle for foundry casting operation,after undertaking iron liquid in front of the furnace , send it to the casting model place to pour by driving car. Ladle for steel making plant, foundry in the open hearth furnace, furnace or converter molten steel, casting operation before undertaking. The worm gear reducer of iron ladle is used to drive the bucket to tilt, which can rotate flexibly and freely, with two-way rotation and good reversibility.

Capacity(t)	Ladle diameter(mm)	Ladle Height(mm)	Outside Size(mm)	Ratio
0.3	512	540	1220*720*1385	63
0.5	590	620	1260*815*1400	63
0.7	675	705	1362*864*1465	63
1.0	750	770	1425*1020*1700	63
1.5	840	850	1532*1145*1836	69
2.0	915	959	1648*1255*2039	69
2.5	985	1025	1750*1346*2140	69
3.0	1050	1088	1778*1390*2168	82
4.0	1140	1208	2000*1520*2400	82
5.0	1250	1260	2170*1600*2585	120
8.0	1458	1446	2210*1818*2725	160

Detailed Photos
Packaging & Shipping

---
