Packaging Box Foam Carton Automatic Digital Blade Cutting Machine

US$13,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YC-1625A
Condition
New
Control
Automatic
Application
Paper, Carton,Corrugated/Honeycomb Board,Packing Box,etc
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month

Product Description

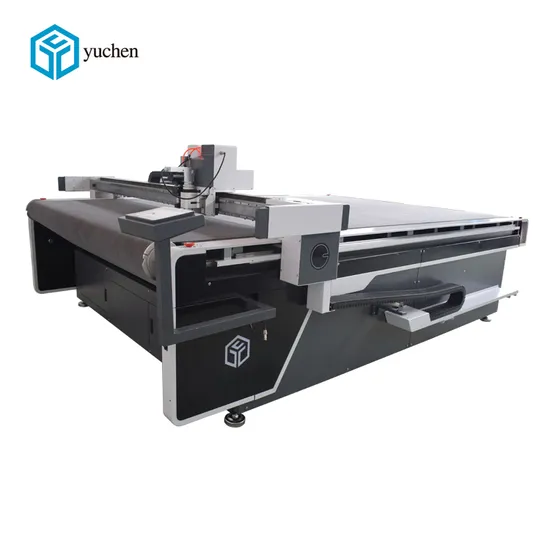

Packaging Box Foam carton Automatic Digital Blade Cutting Machine
Model: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:different kinds of soft materials, sucha as corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials,etc
Application: widely used in automotive interior industry.
Functions: cutting(oscillating cutting tool),
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as creasing tool, V-cut cool,routing tool, oscillating cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
Model YC-1625L YC-1630L YC-1625A
Working area 2500×1600mm 3000×1600mm 2500×1600mm
Operation properties Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device Infrared adopted; sensitive response; safe and reliable
Maxi cutting speed 1200mm/s
Translational velocity 1500mm/s
Applicable materials corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials
Multifunctional head creasing tool, V-cut cool,routing tool, oscillating cutting tool
Cutting thickness 0.1-10.0mm(subject to the material cutting)
Cutting tolerance ±0.1mm
Transmission interface Ethernet
Transmission system Motor:Panasonic
Linear rail:SMTYCC
Fixed mode Vacuum absorb
Supply voltage AC 220V 380V±10%,50HZ
Rated power 11KW
