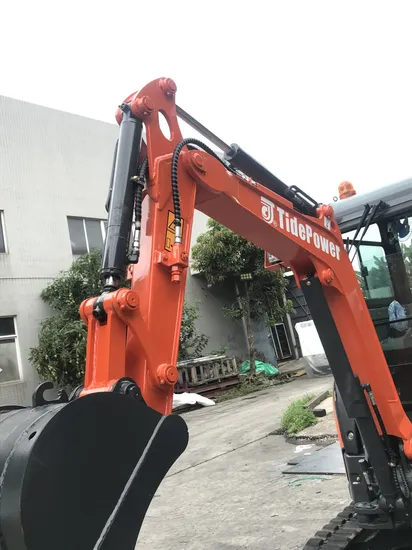

New China 2.5t Mini Pelle Digger Crawler Hydraulic Excavator

US$19,200.00
2-49 Pieces
US$7,500.00
50+ Pieces

Basic Info.

Model NO.
td25u
Type
Crawler Excavator
Usage
Special Excavator, Farming Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.08m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Model
Perkins403D-11/ Yanmar
Pressure to The Ground
26 Kpa
Pump
28L/ Min
Maximum Digging Force
16.7kn
Working Speed
Low 2.3km/H, High 4.1km/H
Power
14.7kw/2200rpm
Maximum Digging Height
3744mm( or 4355mm )
Maximum Digging Radius
4040mm
Minimum Turning Radius
1778mm
Maximum Dumping Height
2670mm
Swing Speed to Platform
13rpm
Bucket Width
500mm
Operation Hydraulic Pressure
21MPa
Width of Track
250mm
Transport Package
Plastic Package
Specification
2.5 tons
Trademark
Tide
Origin
China
HS Code
84295212
Production Capacity
1000

Product Description

Hot sale digger Hydraulic 2.5 tons CE quality Mini Excavator
Model TD10 TD12 TD20U TD25U TD30U
Dimensions
A- Overall Length 2770mm 2550mm 3550mm 3870mm 4010mm
B- Overall Height 1000mm 1500mm 2200mm 2360mm 2360mm
C- Overall Width 925mm 870mm 1320mm 1420mm 1540mm
D- Track Width 180mm 180mm 250mm 250mm 250mm
E- Platform Turning Radius 1330mm 1330mm 730mm 645mm 710mm
F- Length of Track 1210mm 1200mm 1650mm 1895mm 1895mm
G- Sprocket to Idler Centres 910mm 910mm 210mm 250mm 250mm
H- Between Undercarriage and Ground 380mm 380mm 210mm 250mm 250mm
I- Between Boom and Ground - - 1320mm 1340mm 1380mm
J- Width of Platform 896mm 896mm 970mm 1350mm 1350mm
L- Between Platform and Ground 380mm 380mm 480mm 480mm 480mm
20FT Load 4 Sets 4 Sets 4/2 Sets 2 Sets 2 Sets
40GP Load 8 Sets 8 Sets 8/4 Sets 4 Sets 4 Sets
Performance
Engine Model KOOP PERKINS 403D-11
Power 8.6kW 14.7kW/2200Rmp
Operation Pressure 16Mpa 16Mpa 18Mpa 21Mpa 21Mpa
Max. Digging Force 7.2KN 7.2KN 12KN 17.6KN 18.2KN
Gradeability 30° 30° 30° 30° 30°
Ground Pressure 32Kpa 32Kpa 32Kpa 26Kpa 26Kpa
Travel Speed 2Km/h 2Km/h 2.7Km/h 2.3-4.1Km/h 2.3-4.1Km/h
Pump Flow Rate 21.6L/min 21.6L/min 2*17.6+6.6L/min 28L/min 28L/min
Platform Swing Speed 12rpm 12rpm 13rpm 13rpm 13rpm
Bucket Capacity 0.028m³ 0.06m³ 0.07m³ 0.08m³ 0.09m³
Bucket Width 410mm 410mm 450mm 500mm 550mm
Boom Swing - - 45°Left/78° Right
Overall Weight 800Kg 800Kg 1930Kg 2450Kg 2650Kg
Operating Dimensions
A- Max. Digging Height 2650mm 2650mm 3300/3825mm 3744/4335mm 3865/4510mm
B- Max. Dumping Height 1850mm 1850mm 2360mm 2670mm 2760mm
C- Max. Digging Depth 1650mm 1650mm 2200/2405mm 2200/2486mm 2580/2710mm
D- Max. Digging Radius 2900mm 2900mm 3975mm 4155mm 4375mm
Powerful and reliable Perkins/Yanmar engine delivers superior horsepower and performance in a compact size to help you work in the limited space.
Imported hydraulic system & pilot operation levers provide smooth control and easy operation.
A range of tools are matched to the excavator to optimize performance and deliver excellent value through high productivity.
