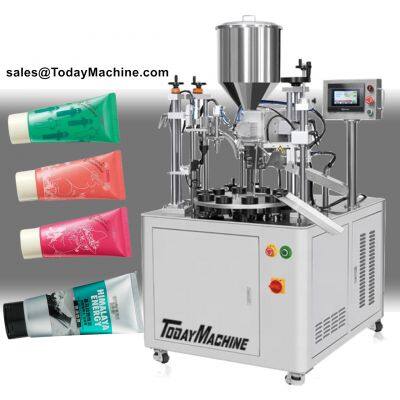

Tube Filling Sealing Machine
A soft tube filling and sealing machine is a type of machine used to fill and seal soft, flexible tubes with various types of products such as toothpaste, creams, gels, lotions, and other semi-liquid or liquid products.
plastic tube sealer machine
Precision Performer: The Tube Filling Sealing Machine is known for its exceptional precision. It can accurately fill and seal soft, flexible tubes with various types of products, ensuring consistent and reliable results every time.
Versatile Virtuoso: This machine showcases its versatility by accommodating a wide range of products, including toothpaste, creams, gels, lotions, and other semi-liquid or liquid substances. It adapts to different formulations and viscosities with ease.
Gentle Touch: With its soft tube filling capability, this machine handles delicate tubes with a gentle touch. It maintains the integrity of the tubes, preventing any damage or distortion during the filling and sealing process.
Efficient Time-Saver: The Tube Filling Sealing Machine excels in optimizing productivity. Its automated operation streamlines the filling and sealing process, reducing manual labor and saving valuable time for manufacturers.
Consistency Champion: Consistency is key, and this machine ensures uniformity in every filled and sealed tube. It delivers a consistent amount of product and creates reliable seals, maintaining the quality and appearance of the packaged items.
Hygiene Advocate: This machine prioritizes hygiene standards. It is designed with easy-to-clean surfaces and materials that can withstand rigorous cleaning and sanitation procedures, ensuring product safety and compliance with industry regulations.
TECHNICAL SPECIFICATION
Model
| TFS-250S
| TFS-250A
| TFS-250AH
|
Automation
| Semi-auto
| Automatic
| Automatic
High speed
|
|
Power
| 2kw
| 4kw
| 4kw
|
Voltage
| 220V 50hz
| 220V 50hz
| 220V 50hz
|
110V 60hz
| 110V 60hz
| 380V 50hz
|
Sealing
| 10-50mm
| 10-50mm
| 10-50mm
|
Diameters
|
Tube Height
| 10-250mm
| 20-250mm
| 45-250mm
|
Air pressure
| 0.6Mpa
| 0.6-0.8Mpa
| 0.5-0.65Mpa
|
Filling Range
| 3-30ml
| 3-30ml
| 3-30ml
|
5-75ml
| 5-75ml
| 5-75ml
|
50-500ml
| 50-500ml
| 50-500ml
|
Capacity
| 20-30
| 25-60
| 60-80
|
pcs/min
| pcs/min
| pcs/min
|
Dimension
| 1100*800*1600mm
| 1600*800*1830mm
| 2500*1200*2400mm
|
|
Weight
| 330kg
| 700kg
| 1500kg
|
>>
