Factory Price Low Cost Hot Sale Ce RoHS UL ETL Approved Test to 3GHz 75 Ohms CCTV Video Coaxial Cable Rg59/Rg59bu with Power Wires

Product Description

SHG High quality test to 3GHz 75 ohms CCTV video coaxial cables RG59, strict comply to standards, better performance than standards. Life-time quality warranty !
RG59 series coaxial cable Include:
Foam PE insulation series: RG59/U, RG59/U+18/2(power wire) siamese cable, RG59/U+power wire composite cable...;
Solid PE insulation (MIL-C-17 standard): RG59B/U, RG59C/U, RG59B/U+power siamese, RG59+Power combo cable...
Test up to 3GHz, UL, ETL, CE, RoHS, ISO9001 approved !
Features
- 100% tested ; - Low Attenuation;
- High reliability ; - Return Loss: >20dB (5-2300MHz) ;
- Lifetime Warranty ; - Impedance: 75+/-3 Ohms;
- CE & RoHS, ETL, UL compliant ; - Velocity of Propagation: 85%
Construction

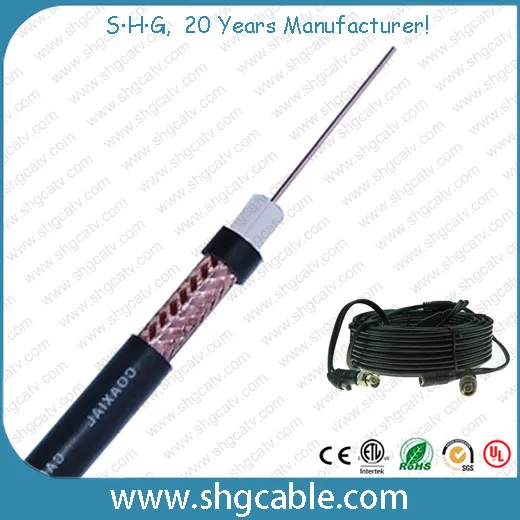

Type 1. Single round Coaxial cable type (RG59B/U caxial cable)
Center Conductor: 0.58+0.01mm 41% CCS or Bare Copper
Dielectric: 3.7+/-0.05mm Solid PE
Shield: Foil optional
Braid Coverage: 85 - 95%% Cu or CCA wires
Jacket: 6.15+0.05mm PVC
Type 2. Composite type / Combo Type (all under 1 outer jacket)
Combo 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Combo 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Combo 3: RG59B/U + 2*0.75mm2 +2*0.22mm2 power wire
Type 3. Siamese Type (RG59 & power wires figre zip 8 in siamese type)
Siamese 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Siamese 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Siamese 3: RG59B/U + 18AWG/2core
Characteristics
Sparker Test: 4000VAC Impedance: 75+/-3 Ohm
Capacitance: 54+3pF/m Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)
Assembly
Assembly usually this cable made composite with 2 cores or 4 cores power wires, and RG59 plug with BNC connector, power wire plug with DC connectors.
Attenuation Sheet

	RG59B/U BC	RG59B/U CCS
Frequency (MHz)	Nom Attenuation (dB/100m)	Nom Attenuation (dB/100m)
5	3.20	3.20
55	8.30	8.30
200	16.50	16.90
450	24.30	8.60
800	33.60	11.30
1000	38.20	39.10

Package - any length in roll / reel / box
Why choose us - see our cable workshop
Certificates
CE, RoHS, ISO9001
Pament Term & Delivery
FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.
Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some on stock, then 2 days, and some not on stock, usually it take 7-25 days after order confirmed (deposit received).
Q4. Where is your nearest sea-port and airport?
SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q4. What's your Payment Term?
SHG: We perfer T/T. Amount above 3000USD, 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Amount less than 3000USD, we perfer 100% in advance ad deposit. Also half as deposit is acceptable, but you bear the high bank fees, if it exceed 30USD each.
Q6. Quality and Reputation:
SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.
