Machine Tool Sells The New High-Speed CNC Drilling and Tapping Center T700

Product Description

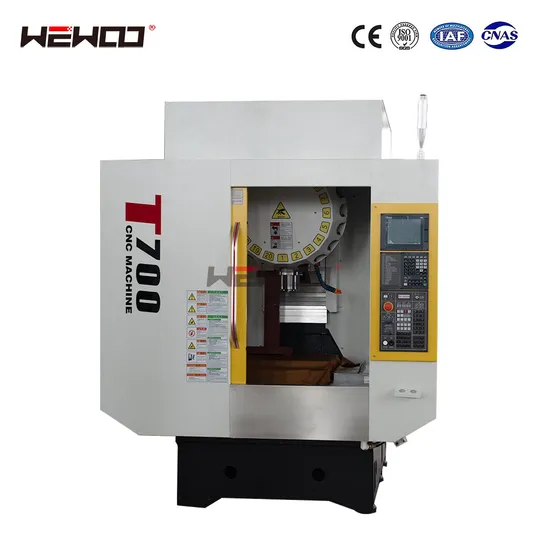

Machine Tool sells the new high-speed CNC drilling and tapping center T700
Product Description
Features: Applicable to the production of precision small parts processing. Variouscomplex 2-3 - convex model, milling, drilling, boring, tapping etc.
The machine is 68 meters fast, using the servo tool library, greatly saving the processing time,Machining Center.

T series technical highlights
1.T high speed high precision drilling machine the main structural parts are made of high quality cast iron, the combination is stable and the quality is guaranteed permanently.
2.Three axis rail support, can support heavy load, fast movement,ensure positioning accuracy.
3.High-speed mute screw, mute line rail to make the thermal deformation less, high accuracy.
4.Straight - junction spindle, high efficiency, no belt power loss.
5.T high speed high precision drilling machine the compact and high speed is suitable for various industries.

Product Parameters
The main technical parameters

Product Main Technical Specifications:
SPECIFICATIONS	UNITS	DY-T600	DY-700
Table size	MM	700 x 420	800 x 420
X axis travel	MM	600	700
Y axis travel	MM	400	400
Z axis travel	MM	350	350
Max. worktable load	KG	300	300
T slot(number-width-pitch)	MM	3 x 14-125	3 x 14-125
Max. spindle speed	RPM	20000	20000
Spindle taper		BT30-100	BT30-100
Main motor power	KG	5.5	5.5
X/Y/Z rapid traverse speed	M/MIN	48/48/48	48/48/48
Distance from spindle axis to column surface	MM	445	445
Distance between spindle nose and worktable surface	MM	145-195	145-1195
Positioning accuracy	MM	±0.005	±0.005
Repeat positioning accuracy	MM	±0.003	±0.003
Tool magazine	handle	21	21
Machine weight	KG	2900	3000
Overall dimension	MM	2000 x 2000 x 2300	2000x2100x2400

Detailed Photos
High-speed and high-precision mechanical spindle A: The spindle motor imported from Taiwan is adopted, the maximum power is 5.5KW, and the speed is 18000rpm; B: Adopt Taiwan high-speed precision spindle BT30 15000-24000rpm; C: Through the direct connection between the spindle and the spindle motor, the transmission efficiency is greatly improved and the transmission noise is reduced; D: Both the spindle and the motor use IRD dynamic balance correction to ensure that the resonance phenomenon is avoided when the spindle is running at high speed, and the best processing finish and precision are ensured.

High-speed and high-precision mechanical spindle A: The spindle motor imported from Taiwan is adopted, the maximum power is 5.5KW, and the speed is 18000rpm; B: Adopt Taiwan high-speed precision spindle BT30 15000-24000rpm; C: Through the direct connection between the spindle and the spindle motor, the transmission efficiency is greatly improved and the transmission noise is reduced; D: Both the spindle and the motor use IRD dynamic balance correction to ensure that the resonance phenomenon is avoided when the spindle is running at high speed, and the best processing finish and precision are ensured.
MACHINE STRUCTUREHigh-speed servo tool magazine : Taiwan clamping arm type (flying saucer type 21T) 21 BT30 tool magazines are very stable and efficient, with accurate positioning, the tool head is near the first tool, the spindle adopts servo linkage tool change, easy to maintain, fast tool exchange, tool-to-tool change tool time 0.8 seconds
New high-speed bus system:: The standard configuration of the CNC control system of the drilling and tapping center TC-640 adopts the latest generation high-speed bus system 22MA from Taiwan, and the CNC system can be configured with a fourth axis interface to achieve complex four-axis linkage processing requirements. Japan's Mitsubishi or Japan's Fanuc system can also be configured according to customer requirements.

Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
