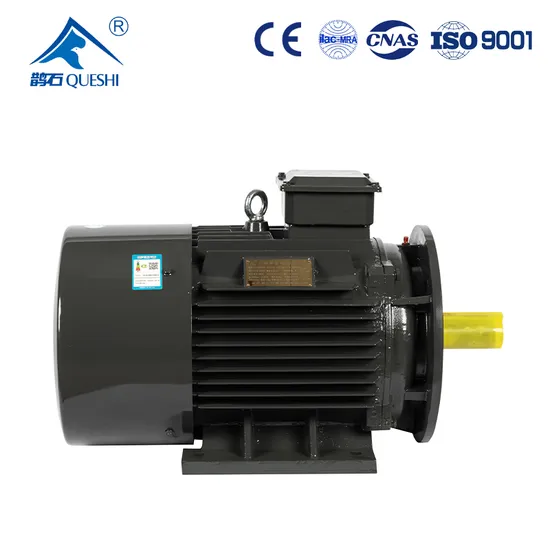

Vertical and Horizontal Three-Phase Asynchronous Electrical Motor Industrial Copper Core AC Motor

Product Description

YE4 series super efficient three-phase asynchronous motor
PRODUCT OVERVIEW Ye4 series ultra-high-efficiency three-phase asynchronous motors are designed by the whole country, and the products have reached the international advanced level in the 10's. It fully conforms to the relevant regulations of JB/T13299-2017 Standard, and is an updated product of Y series motors, the utility model has the advantages of high efficiency, energy saving, novel structure, beautiful shape, low vibration, low noise, etc. .
Operating conditions
Ambient temperature:-15°C≤0≤40°C
Altitude:not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Ratedfrequency:50Hz,60HZ
Protectionclass:lP55
Insulation class:F,H
Coolingmethod:lC0141
Duty:Sl(continuous)
Connection: Star-connection for up to 3kw,
delta-connection for 4kw and above. Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot
Product parameters

Type No.	Rated Power(KW)	Speed	Currentin	Efficiency	POWERFACTOR	Rated Current Ist/IN	Rated farqueTst/TN	Rated torqueTmaxTN
YE3-80M1-2	0.75	2830	1.77	80.7	0.83	6.1	2.2	2.3
YE3-80M2-2	1.1	2830	2.5	82.7	0.84	7.0	2.2	2.3
YE3-90S-2	1.5	2840	3 34	84.2	0.84	7.0	2.2	2.3
YE3-90L2	2.2	2840	4.73	85.9	0.85	7.0	2.2	2.3
YE3-100L2	3	2870	6.19	87.1	0.87	7.5	2.2	2.3
YE3-112M-2	4	2890	8.05	88.1	0 88	7.5	2.2	2.3
YE3 132S1-2	5.5	2900	10.9	89.2	0 88	7.5	2.2	2.3
YE3-132S2-2	7.5	2900	14.7	90.1	0 88	7.5	2.2	2.3
YE3-160M1-2	11	2930	21.0	91.2	0.89	7.5	2.2	2.3
YE3-160M2-2	15	2930	28.4	91.9	0.89	7.5	2.0	2.3
YE3-160L2	18.5	2930	34.4	92.4	0.9	7.5	2.0	2.3
YE3-180M-2	22	2940	40.7	92.7	0.9	7.5	2.0	2.3
YE3-200L1-2	30	2950	55.1	93.3	0.9	7.5	2.0	2.3
YE3-200L2-2	37	2950	67.5	93.7	0.9	7.5	2.0	2.3
YE3-225M-2	45	2970	81.8	94.0	0.9	7.5	2.0	2.3
YE3-250M-2	55	2970	99.6	94.3	0.9	7.5	2.0	2.3
YE3-280S-2	75	2970	135	94.7	0.91	7.5	2.0	2.3
YE3-280M-2	90	2970	160	95.0	0.91	7.5	2.0	2.3
YE3-315S-2	110	2980	195	95.2	0.91	7.1	1.8	2.2
YE3-315M-2	132	2980	233	95.4	0.91	7.1	1.8	2.2
YE3-315L1-2	160	2980	279	95.6	0.92	7.1	1.8	2.2
YE3-315L2-2	200	2980	348	95.8	0.92	7.1	1.8	2.2
YE3-355M2-2	250	2980	435	95.8	0.92	7.1	1.6	2.2
YE3-355L-2	315	2980	548	95.8	0.92	7.1	1.6	2.2

---
